Home  >  HVAC Service Parts  >  Motors  >  Condenser Fan Motors  > 1892 NIDEC CONDENSER MOTOR

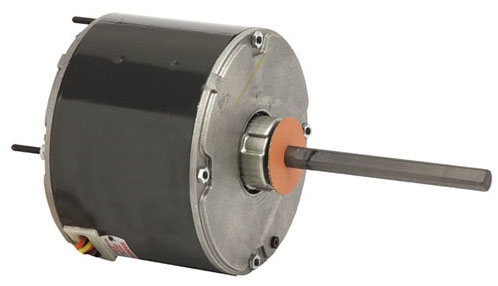

1892 NIDEC CONDENSER MOTOR 1/2hp 208-230V 1625RPM

Item #: 154603
Manufacturer Item: 1892
Manufacturer: TCG - US MOTORS BY NIDEC
1/2 HP, 208 to 230 VAC 1-Phase 60 Hz, 3 A, 1625 RPM, 1-Speed, NEMA Frame 48, TEAO, PSC, Condenser Fan Motor
154603

Automatic Reset Thermal Protection

Ball Bearing have All Angle Thrust System

Hubless Lead End

Drain Hole Both End

Continuous Duty

condenser fan motors

Power Rating
1/2 HP
Voltage Rating
208 to 230 Volt AC 1-Phase
Motor FLA
3 Amp
Speed Rating
1625 RPM
Frequency Rating
60 Hertz
Number of Speeds
1
Enclosure Type
TEAO
Application
HVAC and Refrigeration System
Insulation Class
B
Reversible
Yes
Mounting
Extended Stud
Service Factor
1
