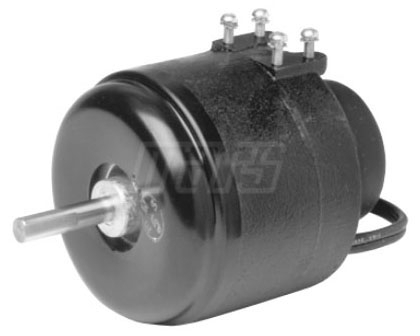

00503 UNIT BEARING MOTOR 3 8 SHAFT 50W 230V CW 1500RPM

Item #: 10221
Manufacturer Item: 00503
Manufacturer: TCG - MARS - MOTORS & ARM
50 W, 230 VAC 60 Hz 1-Phase, 0.85 A, 1500 RPM, 1-Speed, Reversible, TEAO, Unit Bearing Motor
10221

Automatic Thermal Overload Protection

Threaded Shaft

Motors-Controls

Power Rating
50 Watt
Voltage Rating
230 Volt AC 1-Phase
Speed Rating
1500 RPM
Frequency Rating
60 Hertz
Application
HVAC/R System
Enclosure Type
TEAO
Motor FLA
0.85 Amp
Number of Speeds
1
Mounting
End/Side Pad, Horizontal
Approval
UL, CSA
Insulation Class
B
Reversible
Yes
NEMA Frame Size
51
