Home  >  Plumbing  >  Valves  >  Check  > 105-203 LEGEND S451 1/2

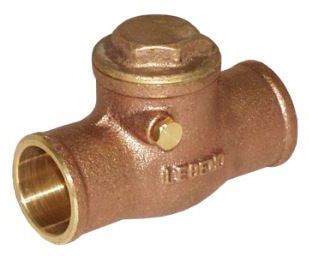

105-203 LEGEND S451 1/2 CHECK VALVE CXC 200WOG

Item #: 104509
Manufacturer Item: 105-203
Manufacturer: TCG - LEGEND VALVE & FITTING
1/2" x 1/2", Soldered x Soldered, 200 PSI, Cast Brass, Swing, Check Valve
104509

Durable, Full-Pattern Cast Brass Body

Large, Integral Seat and Disc Sealing Surfaces

Forged Brass Hinge Pin Assures Smooth, Non-Binding Disc Operation

T-Pattern Body Permits Either Vertical (Upward Flow Only) or Horizontal (Assembly Cap Upright) Installations

Made in USA

Check

Body Material
ASTM B584 UNS C85700 Cast Brass
Inclusions/Features
Forged Brass Hinge Pin
Applicable Standard
ANSI/ASME B16.18, ISO 9002
Application
Commercial, Residential
End Connection
Soldered x Soldered
End to End Distance
1.61 Inch
Pressure Rating
200 PSI CWP
Type
Swing
Disc Material
ASTM B124 UNS C37700 Forged Brass
Cap Material
ASTM B584 UNS C85700 Cast Brass
