Home  >  Plumbing  >  Valves  >  Check  > 105-208NL LEGEND S451 2

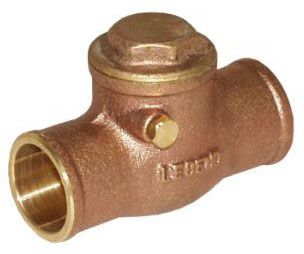

105-208NL LEGEND S451 2 SWING CHECK VALVE CXC 200CWP NO LEAD

Item #: 104514
Manufacturer Item: 105-208NL
Manufacturer: AD - LEGEND VALVE & FITTING
2" x 2", C x C, 200 PSI, Lead-Free, Cast Brass Alloy, Swing, T-Pattern, Check Valve
137058

Conical Lead-Free Check for Full Fluid Flow

Silent Operation

Low Pressure Drop Equivalent to a Swing Check

Stainless Steel Guide, Rod and Spring

Lead-Free

Check

Body Material
Brass
Inclusions/Features
Conical Lead-Free Check for Full Fluid Flow, Silent Operatio
Applicable Standard
NSF/ANSI 372
Application
Commercial, Residential, Industrial, Solar
End Connection
Female Threaded x Female Threaded
End to End Distance
4-1/2 Inch
Pressure Rating
400 PSI at -20 to 100 Deg F (Non-Shock WOG), 15 PSI at 250 D
Type
Swing/Vertical Lift, Silent
Temperature Rating
-20 to 100 Deg F
Seal Material
Nitrile
Seat Material
PTFE
Spring Material
Stainless Steel
