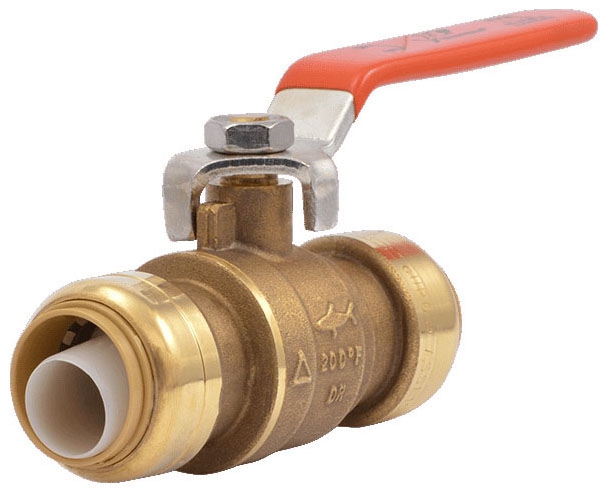

22185-0000LF CASH ACME 3/4 BALL VALVE SBXSB

Item #: 105104
Manufacturer Item: 22185-0000LF
Manufacturer: TCG - RELIANCE WORLDWIDE
3/4" x 3/4", Push-Fit x Push-Fit, 200 PSI, Lead-Free, Steel Lever Handle, Forged Brass, Full Port, Ball Valve
105104

SharkBite is the Push-Fit Connection System that is Really Taking Hold

Its the Easiest Way to Join Copper, CPVC or PEX Pipe in any Combination with No Soldering, Clamps, Unions or Glue

Just Insert the Pipe and the Stainless Steel Teeth Bite Down and Grip Tight, While a Specially Formulated O-Ring Compresses to Create a Perfect Seal

Disassembly is Just as Fast Using the Simple Disconnect Tool so Fittings and Valves Can be Easily Changed and Reused

They Can Even be Rotated after Assembly for Easier Installation in Tight Spaces

Get SharkBite and Get a Grip on Your Next Plumbing Project

Lead-Free

Push Fittings & Valves & Tools

Applicable Standard
NSF/ANSI 61/372, IAPMO/ANSI Z1157, IGZ-157
End Connection
Push-Fit x Push-Fit
Pressure Rating
200 PSI
Application
Water Supply
Temperature Rating
200 Deg F
Inclusions/Features
Brass Body End Retainer/Packing Nut, Stainless Steel Grab Ri
Body Material
DZR Forged Brass
Actuation Type
Lever Handle
End to End Distance
3.62 Inch
Seal Material
EPDM O-Ring
Ball Material
Chrome Plated Forged Brass
Handle Material
Zinc Plated Steel
Port Type
Full
Seat Material
PTFE
Stem Material
Brass
