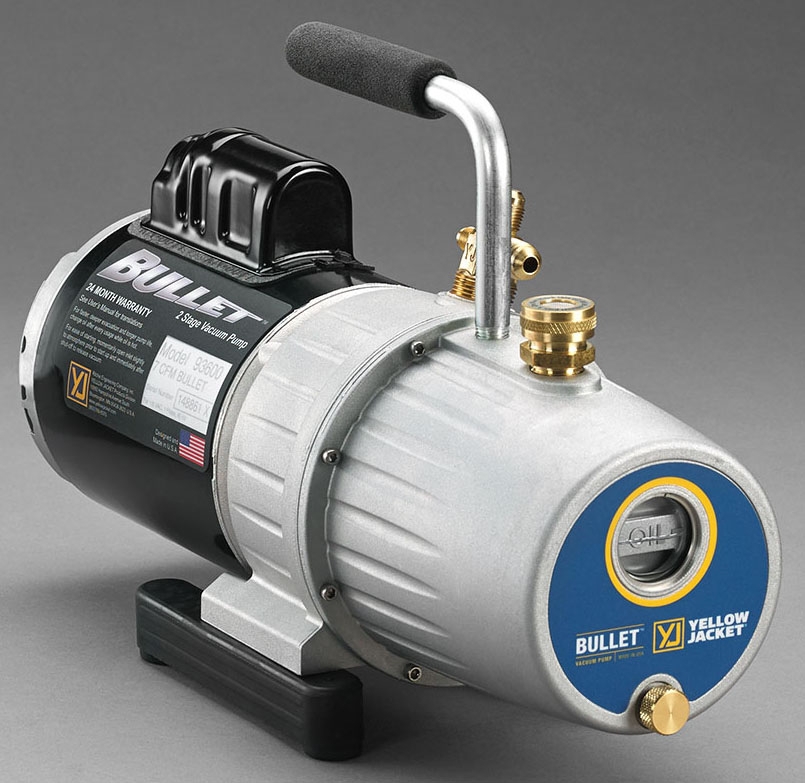

93600 RITCHIE 7 CFM 2 STAGE VACUUM PUMP THE BULLET

Item #: 105790
Manufacturer Item: 93600
Manufacturer: TCG - RITCHIE ENGINEERING COMP
16.25" x 6.25" x 8.25", 115 VAC 60 Hz 1-Phase, 1/2 HP, 1725 RPM, 7 CFM, 2-Stage Rotary Vane, Oil Sealed, Vacuum Pump
You must be logged in to order this item.
Log in here
105790

Wide Mouth Oil Reservoir Port for Easier, Cleaner Filling

Doubles as Pump Exhaust

Threaded to Attach Garden Hose for Exhausting to Remote Location

Large Oil Sight Glass for Easy Monitoring of Oil Level

Large Brass Oil Drain for Easy Access to Fast Oil Changes

Internal Intake Check Valve Prevents Oil Backup into the System During a Power Failure

Intake Filter Screen Keeps Damaging Particles from Entering the Pump

Heavy Duty Rotors and Bearings

Heavy Duty Steel Handle for Well-Balanced Carrying

Tethered Port Caps Stay with the Pump

Stable Base

Wide-Stance Metal with Rubber Overlay

Made in USA

Vacuum Pumps

Type
2-Stage Rotory Vane, Oil Sealed
Flow Rate
7 CFM
Input Supply Rating
115 Volt AC 60 Hertz 1-Phase
Inclusions/Features
Thermal Overload Protection, 6 Foot Motor Mounted Switch Pow
Power Rating
1/2 HP
Speed Rating
1725 RPM
Overall Dimensions
16.25 Inch Length x 6.25 Inch Width x 8.25 Inch Height
Pressure Rating
1000 PSI (Proof), 1500 PSI (Burst)
Temperature Rating
-4 to 122 Deg F
