Home  >  HVAC Service Parts  >  Heating Parts Service  >  Venting Materials  > ZD16X10TZ/U HONEYWELL ZONE

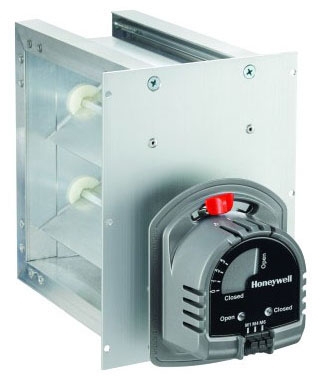

ZD16X10TZ/U HONEYWELL ZONE DAMPER 16X10 PARALLEL BLADE DAMPER

Item #: 108610
Manufacturer Item: ZD16X10TZ/U
Manufacturer: TCG - RESIDEO (HONEYWELL/ADEMC
16'' x 10'', 24 VAC 60 Hz, Extruded Aluminum Frame and Blade, Rectangular, Power Closed, Spring Open, Zone Control Damper
108610

Solid Construction Using Extruded Aluminum Frame and Blades

Parallel Blade Design for Low Leakage Performance

Simple, Easy-To-Wire, Two Wire Installation

Fail-Safe, Normally Open Operation

Damper Can be Installed in any Orientation

Reliable, Strong, 24 Volt Spring Return Motor

Taping Flange and Non-Interfering Set Screw

High Temperature Outer Plastic for Hot Environments

Redesigned all Metal Drive Train Gears

Front Facing Display with LED Indication Light for Open and Close

Adjustable Damper Position Range Stops

Quiet Operation

venting materials

Type
Rectangular, Parallel Blade, Power Closed, Spring Open
Item
Damper
Material
Extruded Aluminum (Frame and Blade)
Overall Size
3-61/64 Inch Width x 4-31/32 Inch Depth x 4-41/64 Inch Heigh
