Home  >  HVAC Service Parts  >  Heating Parts Service  >  Control Boards-Heating Parts Service  > 50M56U-843 WHITE RODGERS

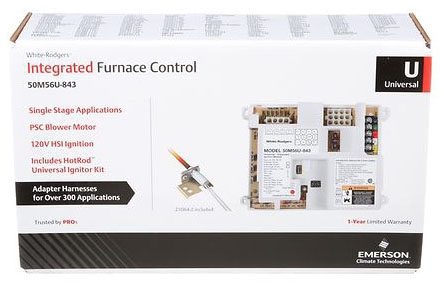

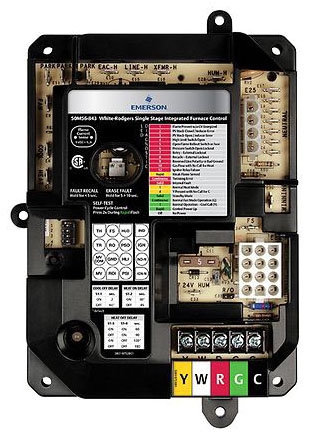

50M56U-843 WHITE RODGERS SINGLE STAGE HSI INTEGRATED FURNACE CONTROL KIT

Item #: 109703
Manufacturer Item: 50M56U-843
Manufacturer: TCG - COPELAND CONTROL SUPPLY
25 VAC, Carbide and Nitride Igniter, 4 Trial, Natural Gas/Liquid Propane, Hot Surface, Ignition Furnace Control Kit
You must be logged in to order this item.
Log in here

3-Speed Fan that Cools, Low Heat and High Heat

Universal Hotrod Nitride Igniter Kit

9 Quick Select/Quick Connect Wiring Harnesses

Red LED Diagnostic Flash Codes with Stored Fault Recall

Low Voltage Fuse Protection, 3 Amp Replaceable Automotive Type

Humidifier and Electronic Air Cleaner Connection

Control Boards-Heating Parts Service

Type
Universal, 1-Stage, Hot Surface
Temperature Rating
-40 to 176 Deg F
Application
Furnace
Valve Rating
1.5 Amp at 25 Volt AC 50/60 Hertz
Ignition Source
Carbide and Nitride Igniter
Ignition Trial Time
3 Second
Fuel Type
Natural Gas, Manufactured, Mixed, Liquefied Petroleum and Li
Flame Failure Response Time
2 Second
Ignition Sequence
4 Trial
Flame Sense Type
Integrated
Approval
CSA (Canada and US)
Power Rating
25 Volt AC 50/60 Hertz
Pre-Purge Time
30 Second
