Home  >  Plumbing  >  Fixtures  >  Water Closets  > GHE2153809 GERBER LOGAN

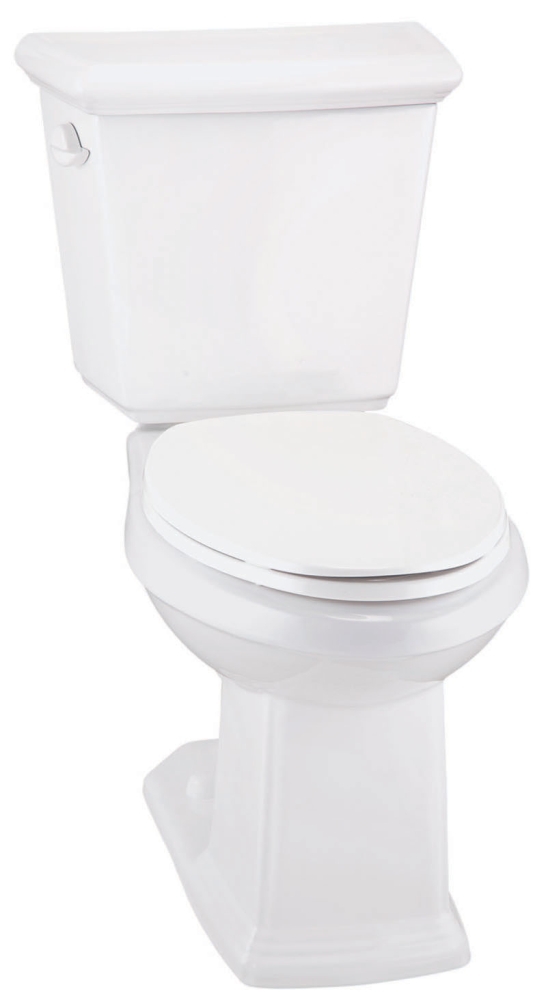

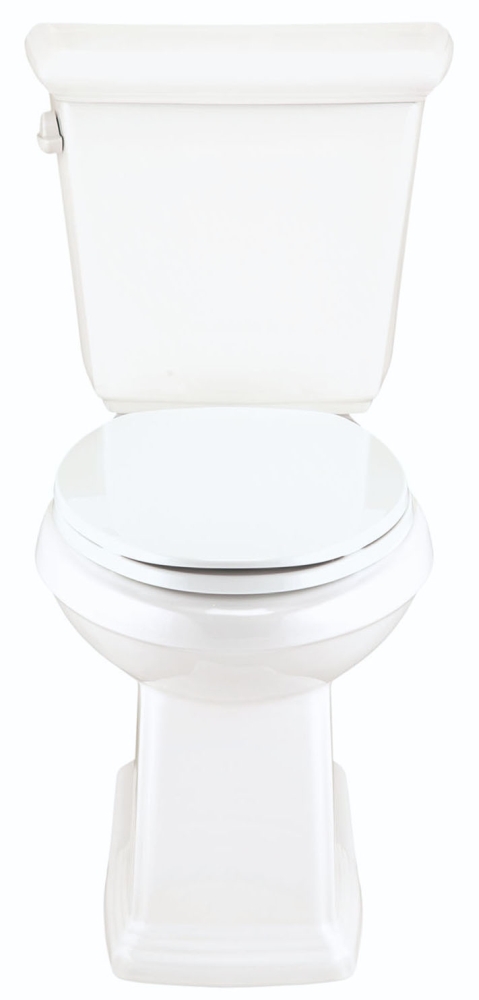

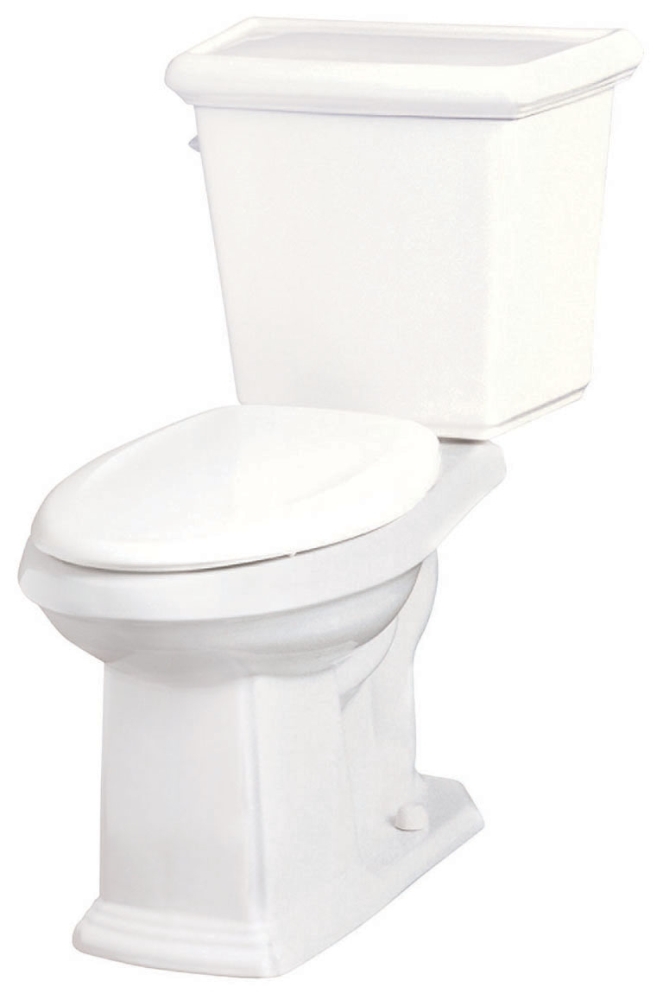

GHE2153809 GERBER LOGAN ELONGATED BOWL 16-1/8 BISCUIT

Item #: 110575
Manufacturer Item: GHE2153809
Manufacturer: TCG - GERBER PLMB FIXTURES
15-1/2" x 16-5/8", 1.28 GPF, 10" Rough-In, Biscuit, Vitreous China, Floor Mount, Elongated, Toilet Bowl

Extra-Large Dual Fed Siphon Jets Increases the Force of the Flush, Clearing the Bowl Effectively

Water Surface to Thoroughly Rinse Bowl with Each Flush

Double Nut, Multi-Point Tank-to-Bowl Mounting System for Easy Tool-Free Installation

2 Inch Fully Glazed Trapway for Clog-Free Waste Removal

ADA Compliant

Water Closets

Gallons per Flush
1.28
Applicable Standard
ADA, ASME A112.19.2
Inclusions/Features
Dual-Fed Siphon Jet, 2 Inch Glazed Trapway, Color Matched Bo
Type
Elongated
Rough-In
10 Inch
Bowl Height
16-5/8 Inch
Mounting Type
Floor Mount
Outlet Location
Bottom
Exclusions
Toilet Seat
Color/Finish
Biscuit
Material
Vitreous China
Used On Item
Toilet
Used On Model/Brand
Logan Square, ErgoHeight
Used On Item Part No
HE-20-019
Inlet Connection
3/8 Inch SPS
