Home  >  Hydronics  >  Valves  >  Ball Valve  > 806764 BVS218 EMERSON BALL

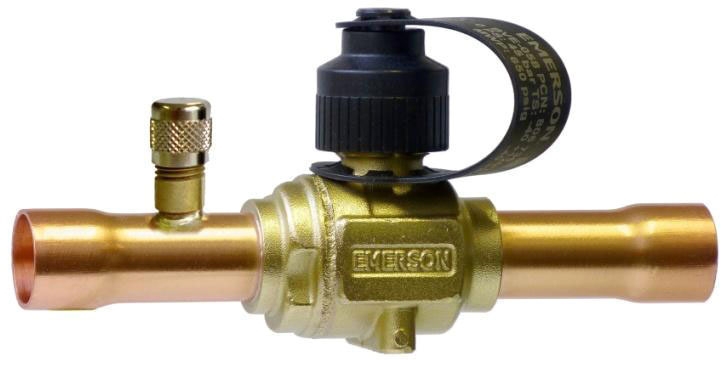

806764 BVS218 EMERSON BALL VALVE 2-1/8 ODF VALVE WITH ACCESS VALVE

Item #: 113164
Manufacturer Item: 806764
Manufacturer: TCG - COPELAND CONTROL SUPPLY
2-1/8" x 2-1/8", ODF Soldered x ODF Soldered, 650 PSI, Forged Brass, Compact, Lightweight, Hermetic Welded, Ball Valve

Full Flow Design

Bi-Directional Flow Characteristics

Valve Stem Cap Retained by Strap Attached to Main Body

Integrated Access Port Available on All Sizes

Low Operating Friction Design

RoHS Compliant

Ball Valve

Inclusions/Features
Copper Extension Tubes, Plastic Stem Cap, Label Strap, Stem,
Applicable Standard
EN 12284/378/12420, PED 97/23/EC
Body Material
Forged Brass
End Connection
ODF Soldered x ODF Soldered
Pressure Rating
650 PSI
Type
Compact, Lightweight, Hermetic Welded
Application
Refrigeration and A/C Industry
Port Type
Pressure Relief
Ball Material
Chrome Plated Brass
End to End Distance
297 Millimeter
Seat Material
Virgin PTFE
Temperature Rating
-40 to 250 Deg F
