Home  >  HVAC Service Parts  >  Motors  >  Condenser Fan Motors  > 5441H NIDEC RESCUE 5

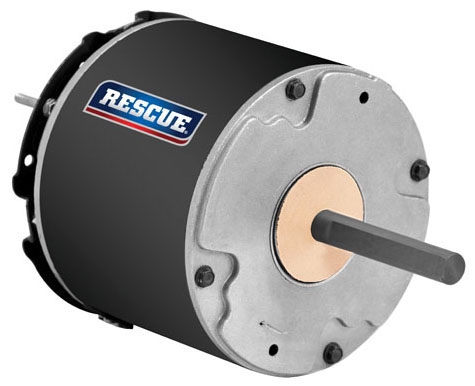

5441H NIDEC RESCUE 5 CONDENSER MOTOR MULTI HORSEPOWER 1075 RPM 1/6hp -

Item #: 119553
Manufacturer Item: 5441H
Manufacturer: AD - NIDEC MOTOR CORPORATION
1/4 to 1/6 HP, 208 to 230 VAC 60 Hz 1-Phase, 1.5 A, 1075 RPM, 1-Speed, Reversible, TEAO, Condenser Fan Motor
130757

All Angle, Sleeve Bearing

Rheem Mounting Holes with Screws Installed

Water Slinger on Shaft

Capacitor Requirement Noted on Motor Label

Auto Thermal Protection

condenser fan motors

Power Rating
1/4 HP
Voltage Rating
208 to 230 Volt AC 1-Phase
Motor FLA
2.2 Amp
Speed Rating
825 RPM
Frequency Rating
60 Hertz
Number of Speeds
1
Enclosure Type
TEAO
Application
HVAC, Outdoor, Heat Pump
Insulation Class
B
Reversible
Yes
Mounting
All Angle
Approval
UL, CUL
Location Description Available
0051 Columbus 8.0
0052 Bloomington 0.0
0053 Indianapolis 0.0
0054 Muncie 1.0
0055 South Bend 0.0
0056 Marion 1.0
