Home  >  Food Service  >  Beverage  >  Beverage Parts  > 3547765 MULTIPLEX B.I.M.

3547765 MULTIPLEX B.I.M. NOZZEL SPRAY RINSE AREA RINSE NOZZEL

Item #: 120610
Manufacturer Item: 3547765
Manufacturer: WELBILT FSG OPERATIONS LLC
Rinse Area Spray Nozzle for Blended Ice Machine
You must be logged in to order this item.
Log in here
124418

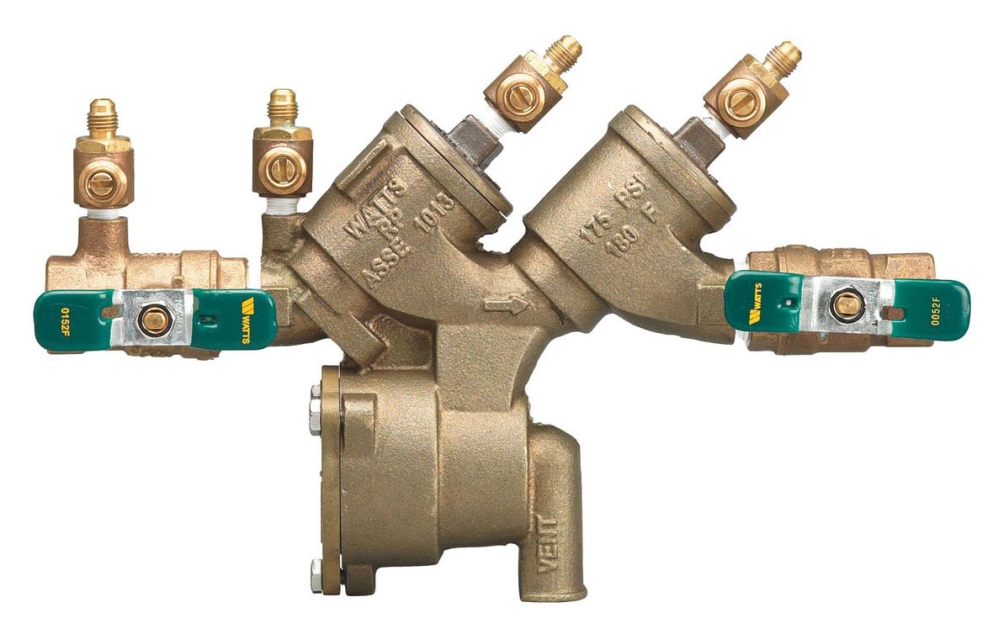

Separate Access Covers for the Check Valves and Relief Valve for Ease of Maintenance

Top Entry, All Check Internals Easily Accessible

All Rubber Elastomers of Chloramine Resistant Material

Check Valve Poppet Assemblies are Fully Guided by Innovative Plastic Seat Guide

Replaceable Push-In Check Valve and Relief Valve Seat Eliminate Threads from the Water Way

EZ Twist Relief Valve Cover Quarter-Turn Locking Joint Capture the Spring Load During Repair to Facilitate Disassembly

Innovative Check Valve Plastic Cover Bushing Provides Trouble free Guiding of the Check Valve Poppet

Bottom Mounted Relief Valve Provides Reduced Installation Clearances

Compact, Space Saving Design

No Special Tools Required for Servicing

Top Mounted Test Cocks for Ease in Testing and Reduced Installation Clearances

Standardly Furnished with Threaded Body Connections

Lead-Free

Safety

Type
Reduced Pressure Zone Assembly, Shut-Off Valve, In-Line
Applicable Standard
CSA (Canada and US), UPC, ASSE 1013, ANSI/NSF 61G
Body Material
Bronze
End Connection
Female Threaded x Female Threaded
Inclusions/Features
(2) Poppet Style Check Valve, Check Seat, Cover Bolt, Ball V
Application
Health Hazard and Contaminants Found at the Service Line Ent
Disc/Poppet Material
Silicone Rubber
End to End Distance
15-1/2 Inch
Pressure Rating
175 PSI
Seat Material
Engineered Plastic
Temperature Rating
33 to 180 Deg F
Valve Configuration
1/4 Turn, T-Handle
Location Description Available
0051 Columbus 0.0
0052 Bloomington 1.0
0053 Indianapolis 1.0
0054 Muncie 0.0
0055 South Bend 0.0
0056 Marion 0.0
