Home  >  Plumbing  >  Pipe & Fittings  >  Pipe Couplings & Fittings  > NH-150 1-1/2 NO HUB

NH-150 1-1/2 NO HUB COUPLING

Item #: 12087
Manufacturer Item: NH-150
Manufacturer: TCG - FERNCO
1-1/2" x 1-1/2", No Hub x No Hub, Standard, Cat Iron to Cast Iron, Straight, Coupling
12087

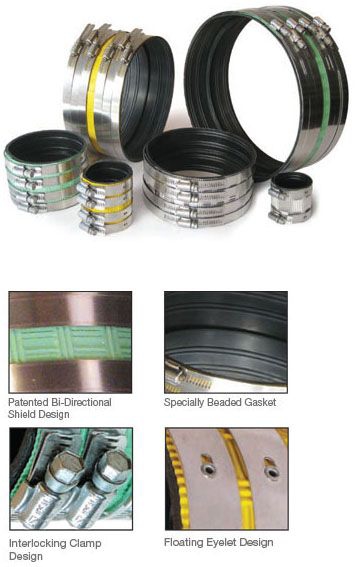

Patented Bi-Directional Shield Design

The Patented, Bi-Directional Corrugation Shield Seals Pressure in Both Parallel and Transverse Patterns on the Gasket and Pipe to Provide a Positive, Reliable Seal

Specially Beaded Gasket

The Beaded Gasket Consists of an Elastomeric Compound with Strategically Positioned Grooves and Beads

Grooves to Provide Exceptional Sealing Pressure and Holding Power

Interlocking Clamp Design, 1-Piece Screw Housing that Mechanically Interlocks to the Band

Floating Eyelet Design Fastenting the Clampes to the Shield, the Floating Eyelets Allow the Clamp, Band and Shield to Move Independently, this Freedom Prevents the Shield from Crimping and Future Leakage

Pipe Couplings & Fittings

Type
Standard, Cat Iron to Cast Iron, Straight
Application
Commercial, Plumbing
Material Specification
ASTM C564/C1277
Applicable Standard
CISPI 301
Gasket Details
Elastomeric Compound
Gasket Supplied
Yes
End Connection
No Hub x No Hub
