Home  >  Supplies  >  Chimney and Venting  >  Type B Gas Vent  > 016405 7RP12 METLVENT 12

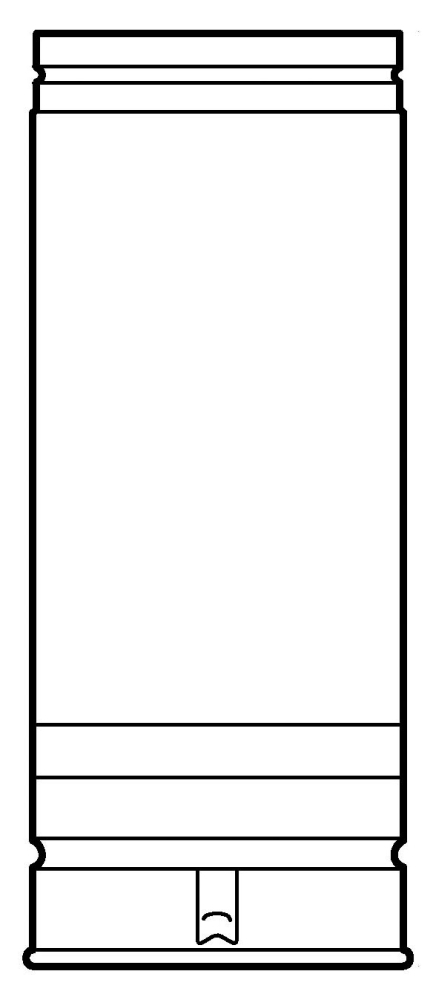

016405 7RP12 METLVENT 12 PIPE

Item #: 12412
Manufacturer Item: 016405
Manufacturer: TCG - HART & COOLEY
3" x 12", Lock Ring, Aluminum/Galvanized Steel, Double Wall, Round, Type B, Gas Vent Pipe

3 to 12 Inch Pipe and Fitting Couplers Overlap 1-3/8 Inch When Joined Together

Therefore, Assembled Length is 1-3/8 Inch Less than Listed Length

The Allowable Minimum Clearance to Combustibles is 1 Inch

A Full Set of Installation Instructions are Supplied with Caps and Supports

Type B Gas Vent

Applicable Standard
UL 441
Material
Aluminum (Inner Wall), Galvanized Steel (Outer Wall)
Type
Double Wall, Round, Type B
Material Thickness
0.012 Inch (Inner Wall), 0.018 Inch (Outer Wall)
Length
12 Inch
Inclusions/Features
Cap
End Type
Lock Ring
Temperature Rating
400 Deg F
Insulation Supplied
Yes
