Home  >  Hydronics  >  Water Heaters  >  Commercial Gas  > BTR199-N AO SMITH

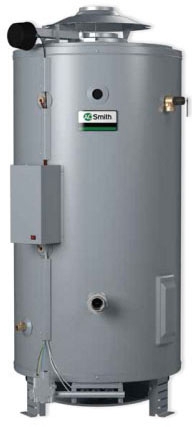

BTR199-N AO SMITH COMMERCIAL WATER HEATER MASTER-FIT 199,000 BTU

Item #: 12579
Manufacturer Item: 100119126
Manufacturer: TCG - AO SMITH PRODUCTS
27-3/4" x 62", 199000 BTU/Hr, 81 Gallon, Lead-Free, Natural Gas, Power, Standard, Commercial Gas Water Heater
0.00
Contact us to order
Quantity Price
1 0.00
12579

Factory-Installed Draft Diverter and Automatic Flue Damper

Low-Profile Draft Diverter Helps for Installation in Tight Spaces

Automatic Motorized Flue Damper Helps Minimize Standby Heat Loss

Hot and Cold Water Connections Can be Made through Front, Top or Rear of Unit

Eliminator System Operates When Cold Water is Connected through Front

The Eliminator Self-Cleaning System - Designed to Significantly Reduce or Eliminate Sediment Build-Up Inside the Tank

Reduced Sediment Build-Up Maintains Rated Thermal Efficiency and Reduces Water Heating Costs

Self-Cleaning System Maximizes Tank Life

Fully Automatic Control System

Manual-Reset Gas Shut-Off Device Prevents Excessive Water Temperature

Handhole Cleanout - Allows Easy Access to Tank Interior for Cleaning

Lead-Free

Commercial Gas

Applicable Standard
AHRI, ANSI Z21.10.3/CSA 4.3, ASHRAE/IESNA 90.1, NSF 5, UL, U
Inclusions/Features
Fully Automatic Control System, Automatic Flue Damper, Facto
Tank Capacity
81 Gallon
Tank Dimensions
27-3/4 Inch Diameter x 62 Inch Height
Tank Warranty
3 Year Limited
Gas Connection
1/2 Inch
Gas Type
Natural
GPH Recovery
132 GPH at 140 Deg F
Input Supply Rating
199000 BTU/Hour
Relief Valve Details
CSA/ASME T and P Relief Valve Factory Installed
Ignition Type
Intermittent Electronic
Options
Leg Kit, Plug Kit
Type
Standard
Tank Height Including Draft Hood
67-1/2 Inch
Inlet/Outlet Connection
1-1/2 Inch Threaded (Top/Front/Back)
Venting Type
Power
Tank Material
Permaglas Ultra Coat Glass Lined
