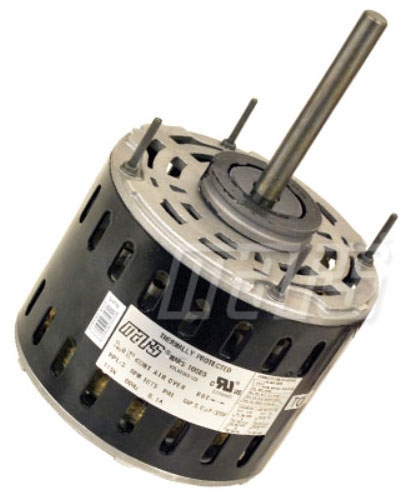

10589 MARS FURNACE BLOWER MOTOR 3/4HP 115V 1075RPM 3 SPEED REVERSIBLE

Item #: 125794
Manufacturer Item: 10589
Manufacturer: TCG - MARS - MOTORS & ARM
3/4 HP, 115 VAC 60 Hz 1-Phase, 11.2 A, 1075 RPM, 3-Speed, Reversible, OAO, Direct Drive Blower Motor
125794

Mars Direct Drive Furnace Blower Motor is Three Speed Standard Efficiency Model

Electrically Reversible and Include 2-1/4 Inch Resilient Rings for Base Mounting

All Angle Sleeve Bearings and have Open Air over Enclosure

Rheem Mounting Holes

1/2 Inch Extended through Bolts

Auto Thermal Overload Protected

direct drive blower motors-Motors

Power Rating
3/4 HP
Voltage Rating
115 Volt AC 1-Phase
Speed Rating
1075 RPM
Frequency Rating
60 Hertz
Motor FLA
11.2 Amp
Number of Speeds
3
Enclosure Type
OAO
Mounting
1-1/2 Inch Extended Through Bolt, 2-1/4 Inch Resilient Ring
Insulation Class
B
Application
HVAC, Blower
Reversible
Yes
Approval
UL, CUL
