Floor

Item #: 125864
Manufacturer Item: FD102-A5
Manufacturer: TCG - WATTS

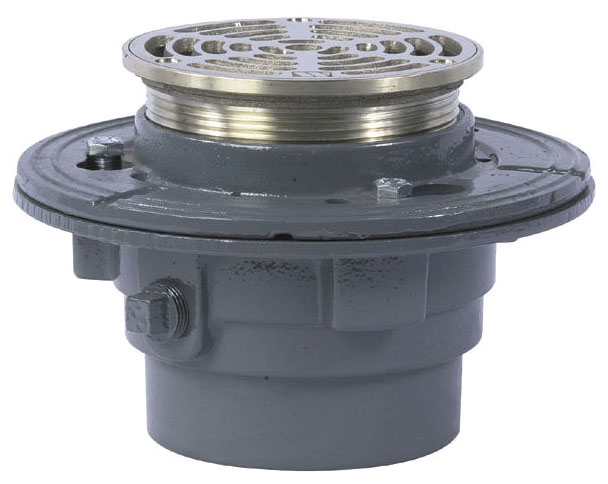

2", 5" Round Top, Epoxy Coated Cast Iron, Adjustable, Floor Drain
125864

Designed for Finished Floor Areas

Sediment Bucket, Vandal Proof, Trap Primer Tapping, Backwater Valve, Hinged Grate, Galvanized Body

BAA Compliant

Floor

Inclusions/Features
Anchor Flange, Reversible Clamping Collar with Primary and S
Pipe Size
2 Inch
Top Shape
Round
Body Material
Epoxy Coated Cast Iron
Top Size
5 Inch
Application
Finished Floor Area
Type
Adjustable
Top Material
Nickel Bronze
Applicable Standard
ASME A112.21.1M
Load Classification
Medium Duty
Outlet Type
No Hub
Overall Top Size
8-1/8 Inch
Free Area Size
8 Square Inch
Sediment Bucket
Yes
