Home  >  Supplies  >  Installation  >  Condensate Pumps  > 83939 RECTORSEAL ASPEN MINI

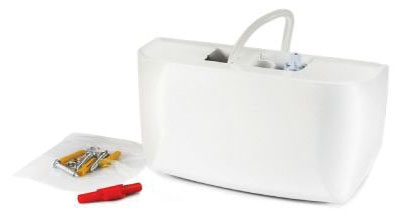

83939 RECTORSEAL ASPEN MINI WHITE PUMP KIT 100-250 VOLT ASP-MW-UNI

Item #: 126233
Manufacturer Item: 83939
Manufacturer: TCG - RECTORSEAL, LLC
100 to 250 VAC, 16W, 0.17 A, 2.9 GPH, 54000 BTU/Hr, White, Condensate Pump Kit
0.00
This item is discontinued
Quantity Price
1 0.00
126233

Surface Mounts Below Evaporator, at Either End

Resilient Mounting Minimizes Vibration and Noise

Cleanable Replaceable Plastic Filter Cartridge Accepts Water Treatment Tablet

Accepts Standard 5/8 Inch Drain Hose from any Mini-Split

Extra Large Reservoir Capacity Minimize Pump Operation

All Components Clip Apart for Easy Disassembly without Tool

Fully Potted Electronics

No Need to Disturb Evaporator to Clean Filter, Reservoir Clips Out from Front for Easy Removal and Replacement

condensate pumps

Discharge Head
33 Foot
Input Supply Rating
100 to 250 Volt AC 0.17 Amp
Flow Rate
2.9 GPH at Zero Head/1.2 GPH at 33 Foot Head
Inclusions/Features
39 Inch Power Cable, In-Line Fuse, Installation Manual, (3)
Overall Dimensions
7-1/8 Inch Length x 2 Inch Width x 4-1/2 Inch Height
Type
Mini-Split
Applicable Standard
CSA (US)
Power Rating
16 Watt
Reservoir Capacity
54000 BTU/Hour
Temperature Rating
104 Deg F
