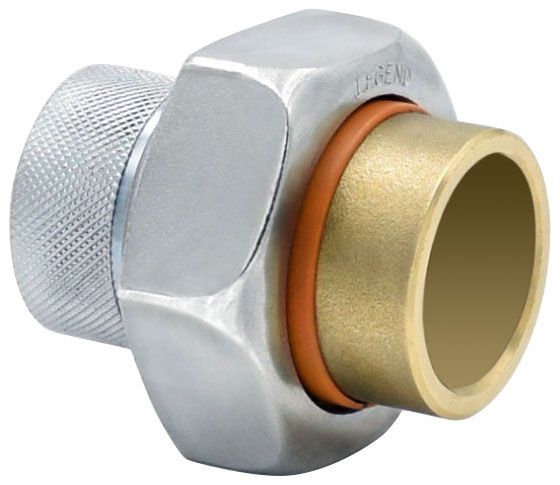

301-104NL LEGEND T571 3/4 DIELECTRIC UNION FXS NO LEAD

Item #: 126993
Manufacturer Item: 301-104NL
Manufacturer: TCG - LEGEND VALVE
3/4" x 3/4", FPT x Soldered, 200 PSI CWP, Lead-Free, Galvanized Forged Carbon Steel, Dielectric, Straight, Union
126993

Designed to Reduce Stray Current and Galvanic Corrosion Where Two Dissimilar Metals are Joined

Self-Aligning, Non-Conductive Elastomer Gasket and Thermoplastic Insert Create a Positive Seal and Complete Isolation Between the Tubing and Piping Ends

Lead-Free

Made in USA

Di-electric unions

Material
Carbon Steel
Applicable Standard
NSF/ANSI 372, ANSI B16.39, ISO 9002
End Connection
Female Threaded x Soldered
Finish
Galvanized
Material Specification
AISI 1008A
Pressure Rating
200 PSI CWP
Process
Forged
Temperature Rating
180 Deg F
Type
Dielectric, Straight
Application
Potable Water, Residential, Commercial
