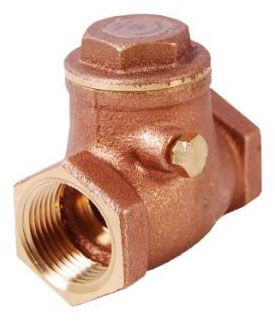

105-108NL LEGEND T451 2 SWING CHECK VALVE 200WOG NO LEAD

Item #: 127632
Manufacturer Item: 105-108NL
Manufacturer: TCG - LEGEND VALVE & FITTING
2" x 2", FPT x FPT, 200 PSI, Lead-Free, Cast Brass Alloy, Swing, T-Pattern, Check Valve
102760

Heavy Duty, Full Pattern Bronze Construction Resists Pipeline Stresses and Distortion

Y-Pattern Body Permits Exceptional Flow Rates, Typically Required in Commercial Applications

Large, Integral Seat and Disc are Tilted Inward at 45 Degrees, Promoting Linear Flow and Minimizing Pressure Drop

Lead-Free

Made in USA

Check

Body Material
JIS H5120 CAC902 Cast Bronze
Inclusions/Features
Forged Brass Hinge Pin/Pin Retaining Plug
Applicable Standard
ANSI/ASME B1.20.1, MSS SP-80, ISO 9002
Application
Potable Water, Commercial
End Connection
Female Threaded x Female Threaded
End to End Distance
3.8 Inch
Pressure Rating
150 PSI SWP, 300 PSI CWP
Type
Y-Pattern
Disc Material
JIS H5120 CAC902 Cast Bronze
Cap Material
JIS H5120 CAC902 Cast Bronze
Temperature Rating
365 Deg F
