Home  >  Supplies  >  Installation  >  Condensate Pumps  > VCMA15ULS LITTLE GIANT

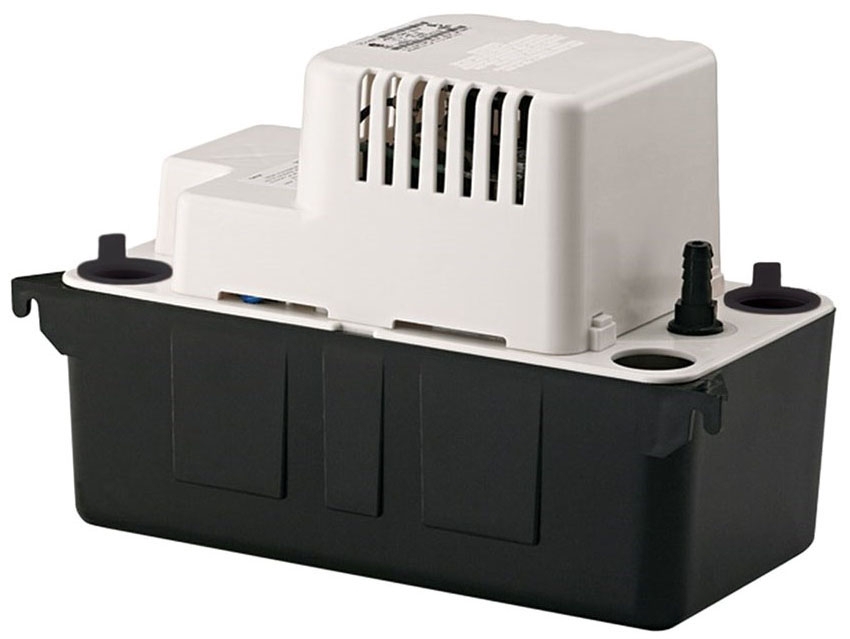

VCMA15ULS LITTLE GIANT CONDENSATE PUMP 554405

Item #: 12853
Manufacturer Item: 554405
Manufacturer: WATERMARK ENGINEERED PRODUCT S
3/8" Discharge, Barbed, 65 GPH, 1/50 HP, 6.5 PSI, 115 VAC 60 Hz, 6' Cord, Vertical Centrifugal, Condensate Pump
12853

Vertical Centrifugal Pump Design

Automatic Start and Stop Operation

Thermal Overload Protection

Built-In Wall Mount Tabs on Tank

Removable Pump Float Locking Tab for Safety During Transportation

Models Equipped with Float Activated Switch for Automatic High-Level Water Detection

condensate pumps

Discharge Head
15 Foot
Input Supply Rating
115 Volt AC 60 Hertz 1 Amp
Flow Rate
65 GPH at 1 Foot
Inclusions/Features
3/4 Inch Outer Diameter Barbed Discharge Adapter, Overflow D
Overall Dimensions
11 Inch Length x 5 Inch Width x 7 Inch Height
Type
Automatic, Vertical Centrifugal
Applicable Standard
CSA (Canada and US)
Application
Air Conditioning, Refrigeration, Dehumidification Equipment,
Power Rating
1/50 HP
Reservoir Capacity
1 or 2 Gallon
Temperature Rating
140 Deg F
Housing Material
ABS Plastic
Power Cord Length
6 Foot
Casing Material
ABS Plastic
Pressure Rating
6.5 PSI
Impeller Material
Glass-Filled Polypropylene
Motor Type
Thermally Protected, Fan Cooled
Shaft Material
Stainless steel
Reservoir Material
ABS Plastic
End Connection
Barbed Outlet
Reservoir Inlet Size
(3) 1-1/8 Inch
