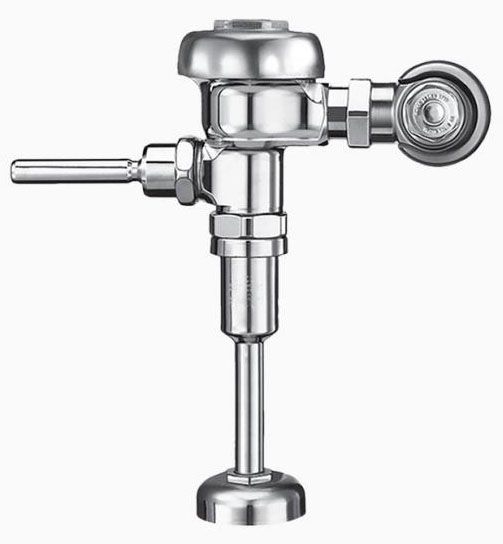

3982628 SLOAN 186-0.5 XL REGAL URINAL FLUSHOMETER 3/4 TOP SPUD 0.5 GPF 3/4

Item #: 132506
Manufacturer Item: 3982628
Manufacturer: SLOAN VALVE COMPANY
3/4" IPS, 0.5 GPF, Semi-Red Brass, Oscillating Non-Hold Open Handle, Diaphragm, 1-Flush, Urinal Flushometer
132506

Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation

Low Consumption Flush Accuracy Controlled by Para-Flo Technology

Handle Packing, Stop Seat and Vacuum Breaker to be Molded from Permex Rubber Compound for Chloramine Resistance

ADA Compliant

WaterSense® Certified

Flush

Actuation Type
Oscillating Non-Hold Open Handle
Applicable Standard
ADA, ANSI/ASME 112.19.2, ASSE 1037, CUPC, CUPC Green, BAA
Body Configuration
Top Spud
Body Material
Semi-Red Brass
End Connection
IPS
Flow Rate
0.5 GPF
Inclusions/Features
Vandal Resistant Stop Cap, Spud Coupling and Spud Flange, Sw
Mounting Type
Top Mount
Sweat Solder Kit Supplied
Yes
Type
Diaphragm, Exposed, Manual, 1-Flush
Used On Item
Urinal
Handle Material
Metal
