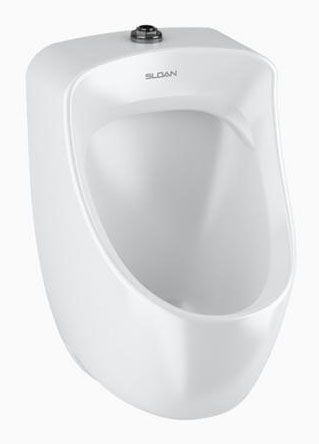

1107009 SLOAN SU-7009-A URINAL UNIVERSAL HIGH EFFICIENCY WASH DOWN WHITE 3/4 TOP SPUD

Item #: 132606
Manufacturer Item: 1107009
Manufacturer: SLOAN VALVE COMPANY
14-3/16" x 14-3/4" x 23-1/2", 0.125 to 0.5 GPF, White, Vitreous China, Top Spud, Flushing Rim, Washdown Flush Action, Urinal
132606

Designed to Maximize and Complement Sloan Flushometers

Small Size and Clean Lines Fits a Large Variety of Applications and Restroom Looks

Vandal Resistant Stainless Steel Strainer Included

ADA Compliant

WaterSense® Certified

Commercial-Urinals

Applicable Standard
ADA, ASME A112.19.2/CSA B45.1, ANSI A117.1, CUPC, IAPMO, EPA
Color/Finish
White
Depth
14-3/4 Inch
Gallons per Flush
0.125 to 0.5
Height
23-1/2 Inch
Inclusions/Features
Mounting Hardware, Vandal Resistant Strainer Assembly, Integ
Inlet Connection
3/4 Inch IPS Top Spud
Inlet/Outlet Location
Top Spud Inlet x Flange Outlet
Length
14-3/16 Inch
Material
Vitreous China
Mounting Type
Wall
Outlet Connection
2 Inch Threaded
Recommended Working Pressure
25 PSI (Flow), 80 PSI (Static)
Rough-In
18-3/8 Inch (Standard), 11-3/8 Inch (ADA)
Type
Small, Flushing Rim, Washdown Flush Action
