Home  >  Plumbing  >  Pumps  >  Sewage  > LE41A LIBERTY 4/10HP SEWAGE

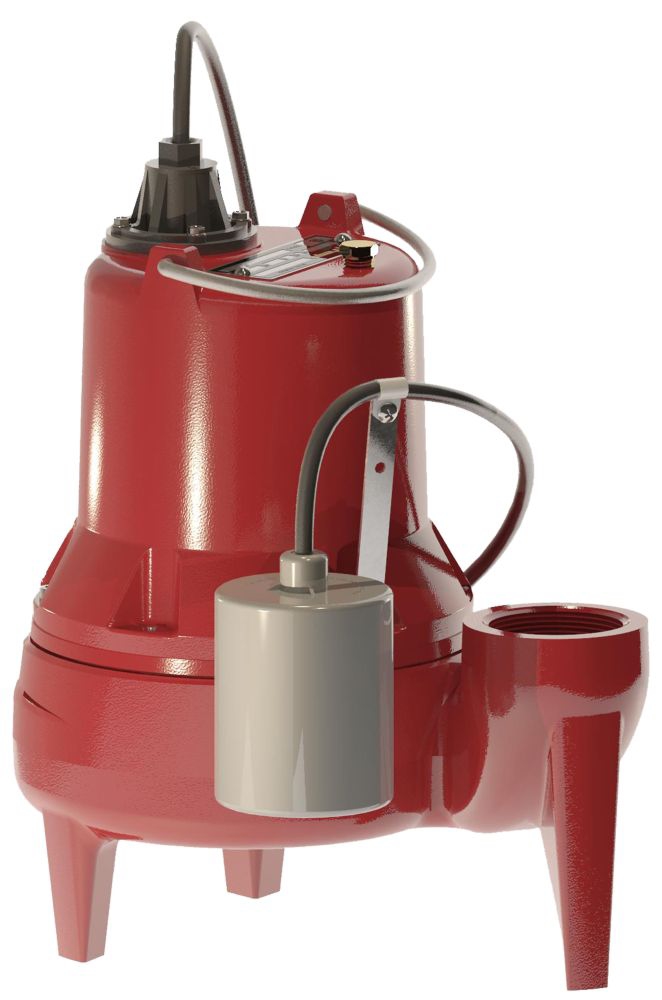

LE41A LIBERTY 4/10HP SEWAGE PUMP 115V 12A 2 DISCHARGE

Item #: 13827
Manufacturer Item: LE41A
Manufacturer: TCG - LIBERTY PUMPS
2" Discharge, FPT x FPT, 125 GPM, 4/10 HP, 1725 RPM, 115 VAC 60 Hz 1-Phase, 10' Cord, Submersible, Automatic, Sewage Pump
13827

Heavy Cast Iron Construction

Oil Filled, Thermally Protected Motor

Permanently Lubricated Ball Bearing

Corrosion Resistant, Vortex Style Impeller Made of High Temperature Engineering Polymer

Quick-Disconnect 10 Foot Standard Power Cord Allows Replacement of Cord in Seconds without Breaking Seal to Motor

Sewage

Type
Submersible, Automatic
Applicable Standard
CSA (Canada and US), SSPMA, ISO 9001
Discharge Head
20 Foot
End Connection
Female Threaded x Female Threaded
Flow Rate
125 GPM at 5 Foot
Housing Material
Class 25 Cast Iron
Inclusions/Features
Gray Class 25 Cast Iron Volute/Leg/Housing, Stainless and Br
Input Supply Rating
115 Volt AC 60 Hertz 1-Phase 12 Amp
Motor Type
Oil Filled Permanent Split Capacitor, Class B Insulation and
Power Rating
4/10 HP
Shaft Material
Stainless steel
Shaft Seal Details
Unitized Ceramic Carbon Mechanical Seal
Speed Rating
1725 RPM
Temperature Rating
140 Deg F (Liquid), 266 Deg F (Stator), 221 Deg F (Thermal O
Warranty
3 Year
Overall Dimensions
10.9 Inch Length x 7.5 Inch Width x 14 Inch Height
Power Cord Length
10 Foot
Casing Material
Class 25 Cast Iron
Float Type
Wide Angle
Impeller Design
Vortex, Pump Out Vane
Impeller Material
Polymer
