Home  >  Air Distribution  >  Flex Duct  >  R6 Vinyl Flexible Duct  > 17602407 ATCO 7X25 R6 FLEX

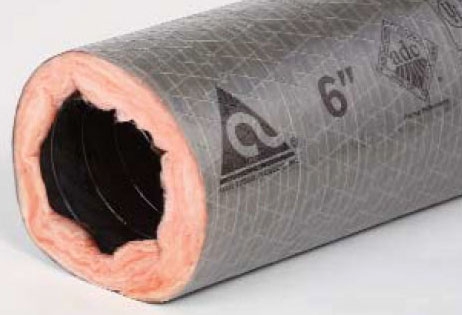

17602407 ATCO 7X25 R6 FLEX DUCT GREY JACKET BAGGED

Item #: 139718
Manufacturer Item: 17602407
Manufacturer: TCG - ATCO RUBBER PRODUCTS INC
7" x 25', 5000 FPM, R6 Thick Blanket Fiberglass Insulation, Class 1, Plain End, Flexible Air Duct
139718

Air-Tight Inner Core - Energy Efficient/No Fiberglass Erosion in to Air Stream

Encapsulated Wire Helix - No Unraveling When Cut to Length/Quick Installation

Smooth Inner Core - Low Friction Loss/Low Operating Cost

Thick Blanket of Fiberglass Insulation - Energy Efficient/Excellent Thermal Characteristics

Tough Reinforced Gray Polyester Jacket - Tear and Puncture Resistant/Low Maintenance

Lightweight Compact Carton - Reduces Warehouse and Jobsite Handling Cost

GREENGUARD® Certified

R6 Vinyl Flexible Duct

Air Velocity
5000 FPM
Applicable Standard
ASTM C518, NFPA 90A/90B, ADC, IMC, IRC, UMC 10-1, HUD, UL 18
Burning Character
Maximum Flame Speed 25, Maximum Smoke Developed 50
Core Material
Double Lamination Tough Polyester with Steel Wire Helix
Insulation Type
R6 Thick Blanket Fiberglass
Jacket Material
Gray Scrim Reinforced Polyester
Length
25 Foot
Rated Negative Pressure
3/4 Inch WG (Maximum)
Rated Positive Pressure
10 Inch WG Positive per UL 181 (Rated), 6 Inch WG (Maximum)
Temperature Rating
-20 to 140 Deg F (Continuous Maximum Pressure), -20 to 180 D
Type
Class 1, Plain End
Width
7 Inch Diameter
