Home  >  Air Distribution  >  Flex Duct  >  R8 Vinyl Flexible Duct  > 17802408 ATCO 8X25 R8 FLEX

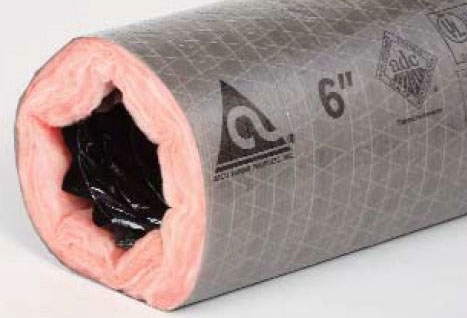

17802408 ATCO 8X25 R8 FLEX DUCT GREY JACKET BAGGED

Item #: 139756
Manufacturer Item: 17802408
Manufacturer: TCG - ATCO RUBBER PRODUCTS INC
8" x 25', 5000 FPM, R8 Thick Blanket Fiberglass Insulation, Class 1, Plain End, Flexible Air Duct
139756

Air-Tight Inner Core - Energy Efficient/No Fiberglass Erosion in to Air Stream

Encapsulated Wire Helix - No Unraveling When Cut to Length/Quick Installation

Smooth Inner Core - Low Friction Loss/Low Operating Cost

Thick Blanket of Fiberglass Insulation - Energy Efficient/Excellent Thermal Characteristics

Tough Reinforced Gray Polyester Jacket - Tear and Puncture Resistant/Low Maintenance

Lightweight Compact Carton - Reduces Warehouse and Jobsite Handling Cost

GREENGUARD® Certified

R8 Vinyl Flexible Duct

Air Velocity
5000 FPM
Applicable Standard
ASTM C518, NFPA 90A/90B, ADC, IMC, IRC, UMC 10-1, HUD, UL 18
Burning Character
Maximum Flame Speed 25, Maximum Smoke Developed 50
Core Material
Double Lamination Tough Polyester with Steel Wire Helix
Insulation Type
R8 Thick Blanket Fiberglass
Jacket Material
Gray Scrim Reinforced Polyester
Length
25 Foot
Rated Negative Pressure
3/4 Inch WG (Maximum)
Rated Positive Pressure
10 Inch WG Positive per UL 181 (Rated), 6 Inch WG (Maximum)
Temperature Rating
-20 to 140 Deg F (Continuous Maximum Pressure), -20 to 180 D
Type
Class 1, Plain End
Width
8 Inch Diameter
