Home  >  Air Distribution  >  Flex Duct  >  R8 Foil Flexible Duct  > 13102414 ATCO 14X25 R8 FLEX

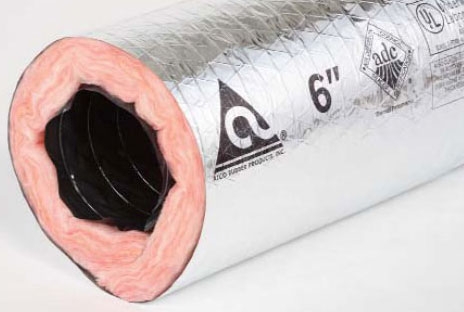

13102414 ATCO 14X25 R8 FLEX DUCT METALLIZED JACKET BAGGED

Item #: 139802
Manufacturer Item: 13102414
Manufacturer: TCG - ATCO RUBBER PRODUCTS INC
14" x 25', 5000 FPM, R8 Thick Blanket Fiberglass Insulation, Class 1, Plain End, Flexible Air Duct
139802

Air-Tight Inner Core - Energy Efficient/No Fiberglass Erosion in to Air Stream

Encapsulated Wire Helix - No Unraveling When Cut to Length/Quick Installation

Smooth Inner Core - Low Friction Loss/Low Operating Cost

Thick Blanket of Fiberglass Insulation - Energy Efficient/Excellent Thermal Characteristics

Tough Reinforced Metalized Polyester Jacket - Tear and Puncture Resistant/Low Maintenance

Lightweight Compact Carton - Reduces Warehouse and Jobsite Handling Cost

GREENGUARD® Certified

R8 Foil Flexible Duct

Air Velocity
5000 FPM
Applicable Standard
ASTM C518, NFPA 90A/90B, ADC, IMC, IRC, UMC 10-1, HUD, UL 18
Burning Character
Maximum Flame Speed 25, Maximum Smoke Developed 50
Core Material
Double Lamination Tough Polyester with Steel Wire Helix
Insulation Type
R8 Thick Blanket Fiberglass
Jacket Material
Silver Scrim Reinforced Metalized Polyester
Length
25 Foot
Rated Negative Pressure
3/4 Inch WG (Maximum)
Rated Positive Pressure
10 Inch WG Positive per UL 181 (Rated), 4 Inch WG (Maximum)
Temperature Rating
-20 to 140 Deg F (Continuous Maximum Pressure), -20 to 180 D
Type
Class 1, Plain End
Width
14 Inch Diameter
