Home  >  Thermostats and IAQ  >  Thermostats  >  Digital Non Programmable  > Digital Non Programmable

Digital Non Programmable

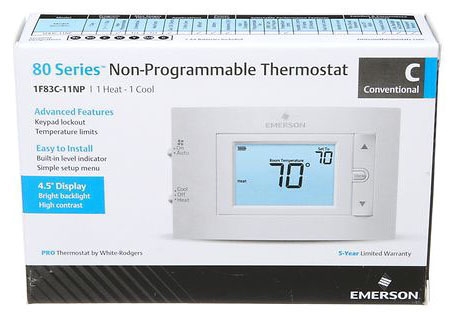

Item #: 144429
Manufacturer Item: 1F83C-11NP
Manufacturer: TCG - WHITE RODGERS
20 to 30 VAC, 1 A, 45 to 99 Deg F, Thermostat

Attractive Sensi Thermostat Styling for Non-Wi-Fi Applications

Universal (1-Stage, Multi-Stage, Heat Pump), Conventional and Heat Pump Models Bright, High Contrast Backlight

Automatic Heat/Cool Changeover Option

Keypad Lockout and Adjustable Heat/Cool Temperature Limits

Built-In Dual Fuel Logic Program Eliminates the Need for an Outdoor Sensor

Digital Non Programmable

Type
1-Heat/1-Cool 1-Stage Heat Pump, 1-Heat/1-Cool Conventional
Voltage Rating
30 Volt AC (Battery), 20 to 30 Volt AC 50/60 Hertz (Hardwire
Current Rating
1 Amp per Terminal
Size
6 Inch Width x 1-1/8 Inch Depth x 3-3/4 Inch Height
Temperature Rating
32 to 105 Deg F (Operating Ambient), 45 to 99 Deg F (Set Poi
Cover Type
Rectangular Horizontal
Approval
NEC Class II
