GMXST-I-120 GRASSLIN TIMER

Item #: 144719
Manufacturer Item: GMXST-I-120
Manufacturer: GRASSLIN CONTROLS CORPORATION
120 VAC 60 Hz, 21 A, 2 HP, SPDT, NEMA 1, Plastic, 24 Hr, Electromechanical Time Switch
144719

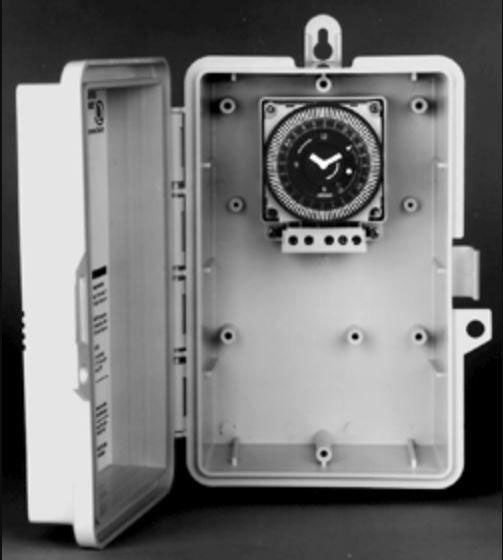

The GMX Series Time Controls are Universal Mechanical Time Switches

They are a Low Cost Alternative for Applications that Do Not Require More than 21 Amp or 2 HP at 240 Volt AC

The Unit is Mounted in a UL Type 1 Indoor or Type 3R Outdoor Plastic Enclosure

The GMX is a Light Duty Commercial Time Switch Ideal for 24, 120 or 208/240 Volt AC 1-Phase General Applications

Manual 3-Way Override

True Clock Face, Easy-to-Set

Finger-Safe Terminals

Enclosure Provides Space for Field-Added Contactor or Other Accessories

Synchronous Drive or Quartz Drive with Self-Recharging Battery Backup

Defrost Controls

Approval
UL (Canada and US)
Material
Plastic
Voltage Rating
120 Volt AC 60 Hertz
Application
Lighting Control, HVAC, Pumps/Motor/Fan Control, General Ele
Switch Type
SPDT
Current Rating
21 Amp at 120 to 250 Volt AC (Resistive)
Power Rating
1 HP at 120 Volt AC, 2 HP at 250 Volt AC (Motor), 1350 Watt
Type
24 Hour
Operating Temperature
-40 to 185 Deg F, -4 to 131 Deg F (Battery Backup)
Enclosure
NEMA 1
Minimum OFF Time
15 Minute
Minimum ON Time
15 Minute
