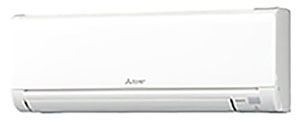

MSZ-GL12NA-U1 MITSUBISHI 12 000/13,600 M-SERIES WALL MOUNT INDOOR UNIT

Item #: 150138
Manufacturer Item: MSZ-GL12NA-U1
Manufacturer: MITSUBISHI ELECTRIC TRANE HVAC
12000 BTU/Hr Cooling, 14400 BTU/Hr Heating, 13 EER/23.1 SEER/12.5 HSPF, 208/230 V, R410A, Multi-Zone, Heat Pump Indoor Unit
You must be logged in to order this item.
Log in here
150138

Slim Wall Mounted Indoor Unit Provide Zone Comfort Control

The Outdoor Unit Power the Indoor Unit and Should a Power Outage Occur, The System is Automatically Restarted When Power Return

Inverter-Driven Compressor and LEV Provide High Efficiency and Comfort While Using Only the Energy Needed to Maintain Maximum Performance

Multiple Fan Speed Options - Quiet, Low, Medium, High, Super-High, Auto

Multiple Control Option Available - Hand-Held Remote Controller, Kumo Cloud Smart Device App for Remote Access, Third-Party Interface Option, Wired or Wireless Controllers

Quiet Operation

Smart Set - Recall a Preferred Preset Temperature Setting at the Touch of a Button

Blue Fin Anti-Corrosion Treatment Applied to the Outdoor Unit Heat Exchanger for Increased Coil Protection and Longer Life

Zoned Comfort - Wall Mounted Heating and Air Conditioning Units Independently Manage the Comfort of a Single Room and Can Maintain the Precise Temperature You Set

Improved Air Quality - Advanced Filtration Features Deodorize and Purify the Air in Your Home, Contributing to Better Health

Remote Operation - You Can Monitor and Adjust Your Wall Unit Air Conditioner and Heater with a Remote Control or Create Programs and Schedules from Your Smartphone or Tablet When Using a Wireless Interface

Energy StarĀ® Rated

Residential Ductless

Cooling Capacity
12000 BTU/Hour
Frequency Rating
60 Hertz
Number of Phases
1
Voltage Rating
208/230 Volt AC
Weight
22 Pound
Approval
ETL (Canada and US)
Enclosure Finish
Munsell 1.0Y 9.2/0.2
Power Rating
920 Watt (Cooling), 1100 Watt at 47 Deg F/870 Watt at 17 Deg
Operating Temperature
67 to 90 Deg F Dry Bulb/57 to 73 Deg F Wet Bulb (Cooling), 7
Type
Single/Multi-Zone, Wall Mount
Temperature Control Type
Thermostat
Cooling Coefficient
3.84 at 47 Deg F, 2.84 at 17 Deg F, 2.81 at 5 Deg F
