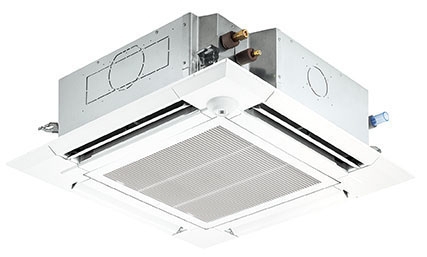

PLA-A12EA7 MITSUBISHI 12 000 P-SERIES INDOOR CEILING CASSETTE UNIT

Item #: 150319
Manufacturer Item: PLA-A12EA7
Manufacturer: MITSUBISHI ELECTRIC TRANE HVAC
12000 BTU/Hr Cooling, 14000 BTU/Hr Heating, 16.4 EER/27 SEER/12.8 HSPF, 208/230 V, R410A, Heat Pump Indoor Unit
150319

Space Efficient Ductless Installation

Equipped with 3D I-See Sensor for Enhanced Comfort and Energy Efficiency

Airflow Setting for High and Low Ceiling Application

Individual Vane Setting for Direct/Indirect Airflow Control or Variable Airflow Patterns

Knockout for Outside Air Intake and Branch Duct Run

Filter Indicator Signal

Easy to Clean, Washable Filter

Built-In Condensate Lift Mechanism

Ideal for Retail Shop, Classrooms, Office Spaces, Conference Centers, Building Lobbies and More

Controlled Airflow - Send the Air Where You Need it Most by Remotely Adjusting Each Vent Individually

Improved Air Quality - Help Protect the Health of Your Family with Advanced Filtration Features that Ensure Better, Fresher Air in Your Home

Remote Operation - You Can Monitor and Adjust Your System with a Remote Control or From Your Smartphone/Tablet

Energy StarĀ® Rated

Commercial-Ductless

Approval
ETL (Canada and US)
Cooling Capacity
12000 BTU/Hour
Enclosure Finish
White Munsell 6.4Y 8.9/0.4
Frequency Rating
60 Hertz
Number of Phases
1
Voltage Rating
208/230 Volt AC
Weight
46 Pound
Power Rating
730 Watt (Cooling), 830 Watt at 47 Deg F/1170 Watt at 17 Deg
Operating Temperature
66 to 90 Deg F Dry Bulb/59 to 73 Deg F Wet Bulb
Type
Ceiling Cassette
