Home  >  Hydronics  >  Water Heaters  >  Residential Electric  > HNT40 AO SMITH PROLINE MASTER

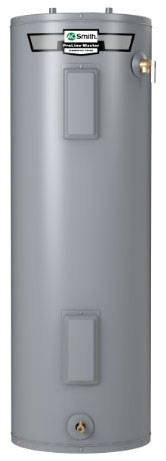

HNT40 AO SMITH PROLINE MASTER 4.5KW 240V 40 GALLON ELECTRIC WATER HEATER

Item #: 151744
Manufacturer: TCG - AO SMITH PRODUCTS
18" x 61-1/4", 4500 W, 240 V, 40 Gallon, Lead-Free, 2-Element, Standard, Tall, Residential Electric Water Heater
151744

Commercial-Grade Heating Elements - Dual 4500 Watt Elements for Fast Recovery and Reliable Operation

Dynaclean Diffuser Dip Tube - Helps Reduce Lime and Sediment Buildup and Maximizes Hot Water Output, Made from Long-Lasting PEX Cross-Linked Polymer

Eco-Friendly Non-CFC Foam Insulation, Heat Traps and Other Features Combine to Yield a Higher Energy Factor that Maximizes Savings on Operating Costs

Coregard Anode Rods have a Stainless Steel Core that Extends the Life of the Anode Rod Allowing Superior Tank Protection Far Longer than Standard Anode Rods

Uses a Standard Female Hose Fitting that Allows for Fast and Easy Draining During Maintenance

Designed for Easy Operation this Valve Includes an Integral Screwdriver Slot that Features a 1/4 Turn (Open/Close) Radius, Which Not Only Permits Full Straight through Water Flow but also a Quick and Positive Shut-Off

Lead-Free

Residential Electric

Applicable Standard
CSA, EPCA, UBC, CEC, HUD, UL, UL 174
Type
Standard, Tall
Tank Dimensions
18 Inch Diameter x 61-1/4 Inch Height
Inlet/Outlet Connection
3/4 Inch Male Threaded (Top)
Inclusions/Features
Heating Element, Dynaclean Diffuser Dip Tube, CoreGard Anode
Power Rating of Elements
4500 Watt (Standard), 3500 Watt (Minimum), 6000 Watt (Maximu
Relief Valve Details
CSA/ASME T and P Relief Valve Supplied
Tank Capacity
40 Gallon
Tank Warranty
8 Year Limited
Number of Elements
2
Input Supply Rating
240 Volt
Drain Valve Details
Tamper Resistant Brass, Enhanced-Flow
GPH Recovery
21 GPH at 90 Deg F
Energy Saver Conformance
Yes
Insulation Details
Non-CFC Foam
Tank Material
Blue Diamond Glass Lined
