Home  >  Hydronics  >  Water Heaters  >  Residential Gas  > HWRL40-N AO SMITH PROLINE

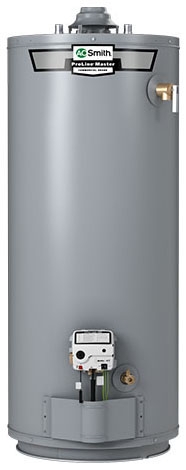

HWRL40-N AO SMITH PROLINE MASTER 40 GALLON NATURAL GAS WATER HEATER 40,000 BTU

Item #: 151755
Manufacturer Item: 100274373
Manufacturer: TCG - AO SMITH PRODUCTS
22" x 48", 40000 BTU/Hr, 40 Gallon, Lead-Free, Natural Gas, Atmospheric Vent, Short Residential Gas Water Heater
151755

DynaClean Diffuser Dip Tube Helps Reduce Lime and Sediment Buildup, Maximizes Hot Water Output and is Made from Long-Lasting PEX Cross-Linked Polymer

Thermopile Design Provides Robust Pilot to Withstand Down Drafts and Environmental Conditions

Easy Temperature Adjustments

Robust 1/4 Inch Pilot Tubing

Blue Diamond® Glass Coating Protects Steel Tank from Corrosion and Maximizes Tank Life

Easy-To-Access Combustion Chamber

Conveniently Located T and P and Drain Valve for Ease of Installation and Serviceability

Piezoelectric Ignitor Allows for Pushbutton Pilot Lighting

CoreGard Magnesium Anode with a Stainless Steel Core Protects the Tank against Corrosion

LED Indicator - Gives Visual Confirmation that Pilot is on by Flashing Continuously - Provides Diagnostics and Troubleshooting

Lead-Free

Residential Gas

Applicable Standard
ANSI Z21.10.1/CSA 4.1, ASHRAE/IES 90.1, CSA, IBC, CEC, HUD
Drain Valve Details
Brass, Enhanced-Flow
Inclusions/Features
Intelligent Control Logic, DynaClean Diffuser Dip Tube, Core
Input Supply Rating
40000 BTU/Hour
Tank Capacity
40 Gallon
Tank Dimensions
22 Inch Diameter x 48 Inch Height
Tank Warranty
8 Year Limited
Type
Short
GPH Recovery
41 GPH at 90 Deg F
Inlet/Outlet Connection
3/4 Inch (Top)
Gas Type
Natural
Ignition Type
Pushbutton Piezoelectric
Relief Valve Details
T and P Valve
Tank Height Including Draft Hood
51-1/2 Inch
Venting Type
Atmospheric
Tank Material
Blue Diamond Glass Lined Steel
Gas Connection
1/2 Inch
