Home  >  Hydronics  >  Water Heaters  >  Residential Gas  > GPVT50-L-S41 AO SMITH 50

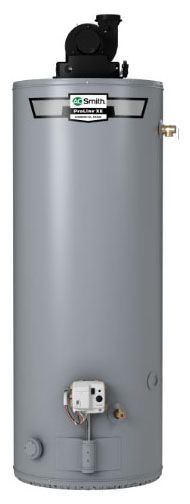

GPVT50-L-S41 AO SMITH 50 GALLON WATER HEATER POWERVENT 40,000 BTU

Item #: 152103
Manufacturer Item: 100114796
Manufacturer: TCG - AO SMITH PRODUCTS
1/2", 50000 BTU/Hr, 50 Gallon, Lead-Free, Blue Diamond Glass Coated, Tall, Residential Propane Gas Water Heater
152103

The Versatile Power Vent Design Feature an Exclusive 3-Position Rotatable Blower Outlet Which Adds Flexibility

Equipped with a Protected Sensor that Detects the Presence of Flammable Vapors and Automatically Disables the Burner to Prevent Ignition

Diffuser Dip Tube Reduces Lime and Sediment Build-Up and Maximizes Hot Water Output

Igniter is More Robust and Reliable than Standing Pilot and Reduces Energy Consumption

Glass Coating Provides Superior Corrosion Resistance Compared to Industry Standard Glass Lining

User-Friendly

State-of-the-Art Electronic Gas Control Provides More Precise Temperature Control

LED Control Light Displays Operation Status and Diagnostics Information

Energy StarĀ® Rated

Lead-Free

Residential Gas

Applicable Standard
ANSI Z21.10.1/10.3/CSA 4.1/4.3, AHRI, CSA
Drain Valve Details
Enhanced Flow Brass, Tamper Resistant, Ball Type
Inclusions/Features
Exclusive Power-Vent Blower, DynaClean Diffuser Dip Tube, 6
Input Supply Rating
50000 BTU/Hour
Tank Capacity
50 Gallon
Tank Dimensions
22 Inch Diameter x 58-3/4 Inch Height
Tank Warranty
6 Year Limited
Type
Tall, High Efficiency, Non-Condensing
GPH Recovery
56 GPH at 90 Deg F
Inlet/Outlet Connection
3/4 Inch (Top)
Gas Type
Propane
Ignition Type
Electronic, Hot Surface
Relief Valve Details
T and P Relief Valve Supplied
Tank Height Including Draft Hood
68-1/8 Inch
Venting Type
Versatile Power, Horizontal and Vertical
Burner Type
Low NOx
Insulation Details
2 Inch Thick Foam
Tank Material
Blue Diamond Glass Coated
Gas Connection
1/2 Inch
Energy Saver Conformance
Yes
