Home  >  Hydronics  >  Water Heaters  >  Residential Gas  > GCRL50-L-S41 AO SMITH 50

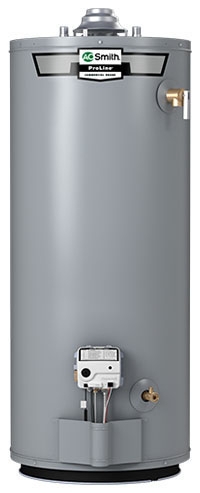

GCRL50-L-S41 AO SMITH 50 GALLON WATER HEATER 40,000 BTU PROLINE PROPANE GAS C3

Item #: 154023
Manufacturer Item: 100210200
Manufacturer: TCG - AO SMITH PRODUCTS
1/2", 40000 BTU/Hr, 50 Gallon, Lead-Free, Blue Diamond Glass Coated, Short, Residential Propane Gas Water Heater
154023

The Internal Intelligent Control Logic Microprocessor Provides Enhanced Operating Parameters and Tighter Differentials for Precise Sensing and Faster Heating Response to Optimize Performance

The Electronic Gas Control Incorporates an LED Status Indicator that Monitors System Operation and Service Diagnostics

Patented Eco-Friendly Burner Design Reduces NOx Emissions by up to 33% and Complies with Low-NOx Emission Requirements of Less than 40 Nanogram per Joule

Dynaclean Diffuser Dip Tube Reduces Lime and Sediment Build-Up and Maximizes Hot Water Output, Made from Long-Lasting PEX Cross-Linked Polymer

CoreGard Anode Rods have a Stainless Steel Core that Extends the Life of the Anode Rod Allowing Superior Tank Protection Far Longer than Standard Anode Rods

Piezo Igniter Makes Lighting the Pilot Fast and Easy with One-Hand Pushbutton Spark Ignition

Heat Trap Nipples are Factory-Installed for Faster Installation

Blue Diamond Glass Coating Provides Superior Corrosion Resistance Compared to Industry Standard Glass Lining

Our Residential Water Heaters have a Solid Brass, Tamper Resistant, Enhanced-Flow, Ball Type, Drain Valve

Eco-Friendly Non-CFC Foam Insulation, External Heat Traps and Specially Designed Combustion Chamber Combine to Produce a High UEF for Maximum Savings on Operating Cost

Energy StarĀ® Rated

Lead-Free

Residential Gas

Applicable Standard
ANSI Z21.10.1/CSA 4.1, ASHRAE/IES 90.1, CSA, EPCA, CEC, HUD,
Drain Valve Details
Enhanced Flow Brass, Tamper Resistant, Ball Type
Inclusions/Features
Intelligent Control Logic, CoreGard Anode Rod, DynaClean Dif
Input Supply Rating
40000 BTU/Hour
Tank Capacity
50 Gallon
Tank Dimensions
24 Inch Diameter x 49-3/4 Inch Height
Tank Warranty
6 Year Limited
Type
Short
GPH Recovery
43 GPH at 90 Deg F
Inlet/Outlet Connection
3/4 Inch (Top)
Gas Type
Propane
Ignition Type
Pushbutton Piezo, Spark
Relief Valve Details
T and P Relief Valve Supplied
Tank Height Including Draft Hood
53-1/4 Inch
Venting Type
Atmospheric, Standard
Burner Type
Green Choice, Low NOx
Insulation Details
Non-CFC Foam
Tank Material
Blue Diamond Glass Coated
Gas Connection
1/2 Inch
Energy Saver Conformance
Yes
Options
Side Mounted Recirculating Tap
