Home  >  Plumbing  >  Valves  >  Pressure Relief  > 23343-0150 CASH ACME FWL-2

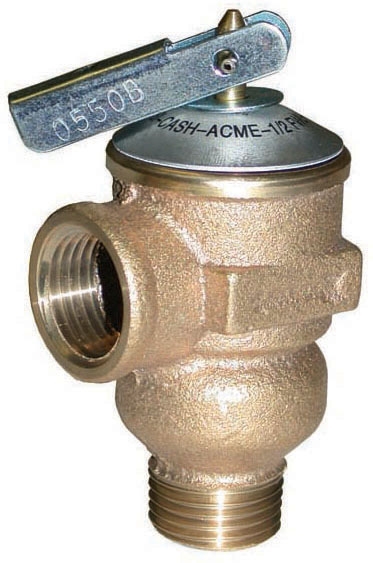

23343-0150 CASH ACME FWL-2 3/4 RELIEF VALVE SET @ 150 PSI

Item #: 155142
Manufacturer Item: 23343-0150
Manufacturer: TCG - RELIANCE WORLDWIDE
3/4" x 3/4", MPT x FPT, 150 PSI, Lead-Free, 500000 BTU/Hr, Bronze, Pressure Relief Valve
155142

The FWL2 is a Pressure Only Relief Valve Designed Specifically for the Protection of Hot Water Supply Systems Where Over Pressure Conditions are Likely to Occur as a Result of Thermal Expansion

Completely Automatic, The FWL 2 Reseats after Pressure Relief

The Valve May be Installed Directly on the Tank or in a Tee and is Appropriate for Either Side (Hot or Cold) of the Water Heater

Offers Protection from Over Pressure Conditions that are Likely to Occur as a Result of Thermal Expansion

Compact and Economical

Every Valve is Tested for Performance Prior to Shipping

Lead-Free

Pressure Relief

Application
Commercial, Residential and Domestic Hot Water Heating
Body Material
Bronze
End Connection
Male Threaded x Female Threaded
Inclusions/Features
Brass and Stainless Steel Internal Part
Set Pressure Range
150 PSI
Applicable Standard
ANSI Z21.22/CSA 4.4, ASME IV, AGA
Spring Material
Stainless Steel
Disc Material
Silicone
Seat Material
Silicone
