Home  >  Plumbing  >  Valves  >  Mixing/Tempering  > 24525 CASH ACME HEATGUARD

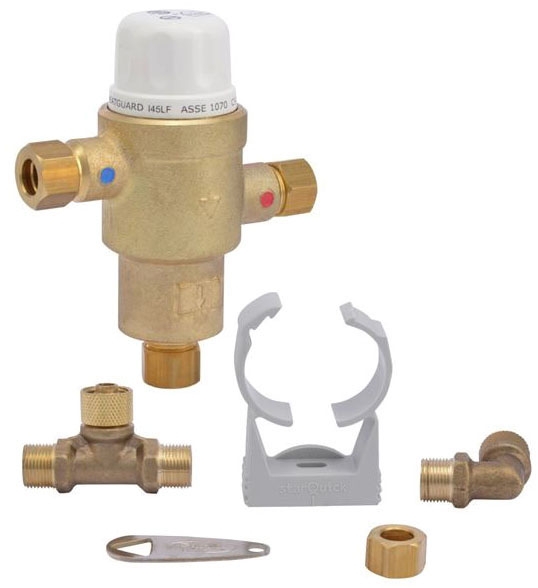

24525 CASH ACME HEATGUARD HG145 3/8 OD COMPRESSION THERMOSTATIC MIXING VALVE

Item #: 156287
Manufacturer Item: 24525
Manufacturer: TCG - RELIANCE WORLDWIDE
3/8" x 3/8" x 3/8", Compression x Compression x Compression, 230 PSI, Lead-Free, Bronze, In-Line, Thermostatic Mixing Valve
156287

Compact Design Easily Fits Under or Behind a Single Basin

Accurate Temperature Control with Flow

Robust, Low Complexity Construction for Superior Reliability

Automated Testing Station During the Assembly Process

Lead-Free

Mixing/Tempering

Applicable Standard
ASSE 1070, CSA B125.3, NSF/ANSI 372/61, IAPMO
Application
Commercial, Residential
End Connection
Compression x Compression x Compression
End to End Distance
3.2 Inch
Flow Rate
0.34 to 5.8 GPM
Pressure Rating
230 PSI
Set Temperature Range
110 Deg F
Temperature Rating
120 to 194 Deg F (Hot), 39 to 85 Deg F (Cold), 95 to 118 Deg
Type
Robust, Low Complexity, In-Line
Base to Inlet Dimension
2.4 Inch, 1.9 Inch
Body Material
Bronze
Inclusions/Features
Stainless Steel Spring, Brass Internal Cap, Polymer Piston,
