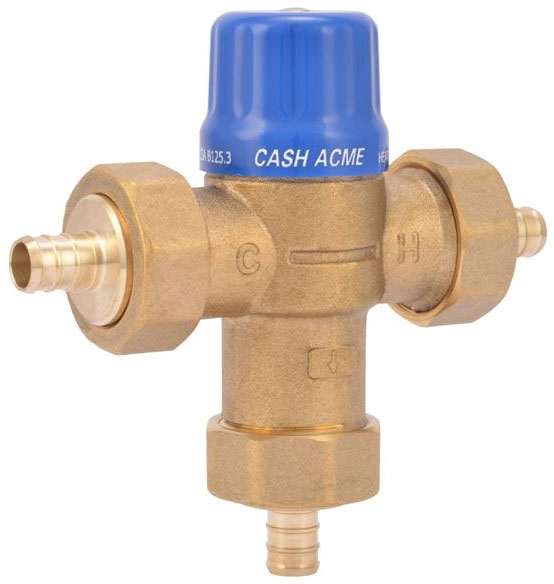

24506 CASH ACME HG110-D 1/2 TEMPERING VALVE BARBED CONNECTION WITH INTEGRAL

Item #: 156289
Manufacturer Item: 24506
Manufacturer: TCG - RELIANCE WORLDWIDE
1/2" x 1/2" x 1/2", Barb x Barb x Barb, 230 PSI, Lead-Free, Bronze, Distribution, In-Line, Thermostatic Mixing Valve
156289

Certified for Distribution and Point-Of-Use Application

Safer Hot Water from all Outlet

Greater Effective Hot Water Volume Yields Less Chance of Legionella within the Cylinder

Specify and Install with Confidence Robust, Low Complexity Construction

Superior Reliability, Improved User Safety

Adjustable and Lockable Mechanism

Lead-Free

Mixing/Tempering

Applicable Standard
ASSE 1017/1069/1070, CSA B125.3, NSF/ANSI 61/372, IAPMO
Application
Domestic and Commercial Hot Water Distribution
End Connection
Barb x Barb x Barb
End to End Distance
3.6 Inch
Flow Rate
1 to 20 GPM
Pressure Rating
230 PSI
Set Temperature Range
120 Deg F
Temperature Rating
120 to 180 Deg F (Hot), 39 to 80 Deg F (Cold), 85 to 130 Deg
Type
Robust, Low Complexity, Distribution, In-Line
Base to Inlet Dimension
1.9 Inch
Body Material
Bronze
Inclusions/Features
EPDM Seal, Stainless Steel Spring, Brass Internal Cap, Polym
