Home  >  Plumbing  >  Pipe & Fittings  >  Push Fittings & Valves & Tools  > 24867 CASH-ACME HEATGAURD

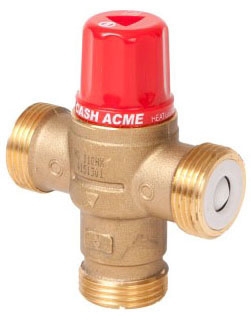

24867 CASH-ACME HEATGAURD HG110-HX 3/4 MIXING VALVE WITH SHARKBITE CONNECTIONS

Item #: 159258
Manufacturer Item: 24867
Manufacturer: TCG - RELIANCE WORLDWIDE
3/4" x 3/4" x 3/4", MPT x MPT x MPT, 230 PSI, Lead-Free, DZR Brass, Radiant Heating, Thermostatic Mixing Valve
159258

High Flow Rate Design for Lower Pressure Losses within the System

Robust, Low Complexity Construction

Integral Union Connections on All Three Ports

Unique, Purpose Designed Adjuster Tool

Lead-Free

Push Fittings & Valves & Tools

Applicable Standard
ASSE 1070, CSA B125.3, NSF/ANSI 372/61, IAPMO
End Connection
Male Threaded x Male Threaded x Male Threaded
Pressure Rating
230 PSI
Application
Commercial, Residential
Temperature Rating
120 to 180 Deg F (Hot), 39 to 80 Deg F (Cold), 85 to 176 Deg
Type
Robust, Low Complexity, Radiant Heating
Inclusions/Features
EPDM Seal, Stainless Steel Spring, Brass Internal Cap, Polym
Body Material
Dezincification Resistant Brass
End to End Distance
3.3 Inch
Base to Inlet Dimension
1.9 Inch
