Home  >  Hydronics  >  Water Heaters  >  Residential Gas  > HWRL50-L-S41 AO SMITH

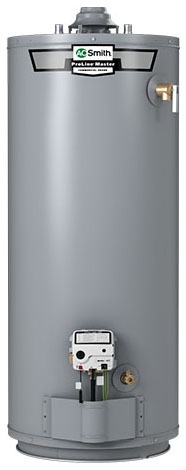

HWRL50-L-S41 AO SMITH PROLINE MASTER 50 GALLON PROPANE GAS WATER HEATER 40

Item #: 159464
Manufacturer: TCG - AO SMITH PRODUCTS
1/2", 40000 BTU/Hr, 50 Gallon, Lead-Free, Blue Diamond Glass Coated, Short, Residential Propane Gas Water Heater
159464

DynaClean Diffuser Dip Tube Helps Reduce Lime and Sediment Build-Up, Maximizes Hot Water Output and is Made from Long-Lasting PEX Cross-Linked Polymer

Thermopile Design Provides Robust Pilot to Withstand Down Drafts and Environmental Conditions

Easy Temperature Adjustments

Robust 1/4 Inch Pilot Tubing

Blue Diamond® Glass Coating Protects Steel Tank from Corrosion and Maximizes Tank Life

Easy-to-Access Combustion Chamber

Conveniently Located T and P and Drain Valve for Ease of Installation and Serviceability

Piezoelectric Ignitor Allows for Pushbutton Pilot Lighting

CoreGard Magnesium Anode with a Stainless Steel Core Protects the Tank against Corrosion

LED Indicator - Gives Visual Confirmation that Pilot is on by Flashing Continuously - Provides Diagnostics and Troubleshooting

Energy Star® Rated

Lead-Free

Residential Gas

Applicable Standard
ANSI Z21.10.1/CSA 4.1, ASHRAE/IES 90.1, CSA, IBC, CEC, EPCA,
Drain Valve Details
Enhanced Flow Brass, Tamper Resistant, Ball Type
Inclusions/Features
Intelligent Control Logic, DynaClean Diffuser Dip Tube, Core
Input Supply Rating
40000 BTU/Hour
Tank Capacity
50 Gallon
Tank Dimensions
24 Inch Diameter x 49-3/4 Inch Height
Tank Warranty
8 Year Limited
Type
Short
GPH Recovery
43 GPH at 90 Deg F
Inlet/Outlet Connection
3/4 Inch (Top)
Gas Type
Propane
Ignition Type
Pushbutton Piezo, Spark
Relief Valve Details
T and P Relief Valve Supplied
Tank Height Including Draft Hood
53-1/4 Inch
Venting Type
Atmospheric, Standard
Burner Type
Green Choice, Low NOx
Insulation Details
Non-CFC Foam
Tank Material
Blue Diamond Glass Coated
Gas Connection
1/2 Inch
Energy Saver Conformance
Yes
