Home  >  Plumbing  >  Pumps  >  Sewage  > LSGX202-REX LIBERTY TWO

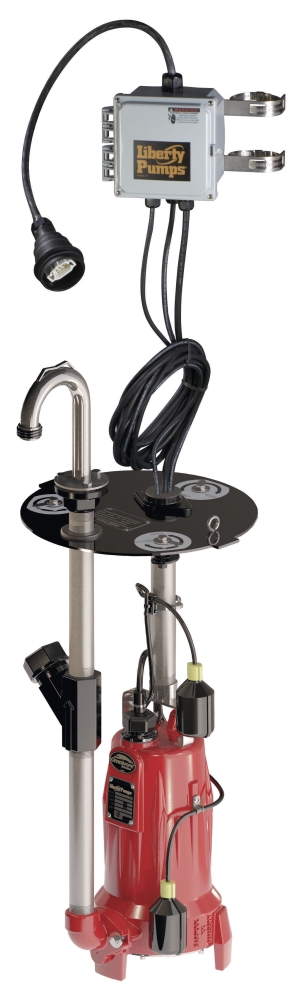

LSGX202-REX LIBERTY TWO STAGE 2HP RETRO-FIT GRINDER PUMP FOR E/ONE GP200 AND

Item #: 160445
Manufacturer Item: LSGX202-REX
Manufacturer: TCG - LIBERTY PUMPS
1-1/4" FPT, 2 HP, 208 to 230 VAC 60 Hz 15 A, 3450 RPM, 38 GPM at 10', Powder Coated, Cast Iron, 2-Stage, Grinder Pump
160445

Fully Assembled and Ready to Drop-In-Place

NEMA 4X Junction Box Contains Motor Contactor and Terminal Strip

Alarm Float Works as a Redundant ON Float

Will Sound Alarm and Activate Pump in the Event of a Main Switch Failure

Stainless Steel Piping and Discharge Elbow

Sewage

Type
Submersible, Automatic, 2-Stage
Applicable Standard
CSA (Canada and US), SSPMA, ISO 9001
Discharge Head
110 Foot
End Connection
Female Threaded
Flow Rate
38 GPM at 10 Foot
Housing Material
Cast Iron
Inclusions/Features
Float, Piping, Replacement Cover, Sealed 6-Pin Quick Connect
Input Supply Rating
208 to 230 Volt AC 60 Hertz 1-Phase 15 Amp
Motor Type
Oil Filled, Class B Insulation and NEMA B Design
Power Rating
2 HP
Shaft Material
300 Series Stainless Steel
Shaft Seal Details
Unitized Silicon Carbide Mechanical Seal
Speed Rating
3450 RPM
Temperature Rating
135 Deg C
Warranty
3 Year
Overall Dimensions
18.2 Inch Length x 16.8 Inch Width x 44.5 Inch Height
Power Cord Length
10 Foot
Application
Piping
Cutter Material
440 Stainless Steel
