Home  >  HVAC Equipment  >  Residential  >  Air Handlers  > BCE5C60MA1P DUCANE 5 TON

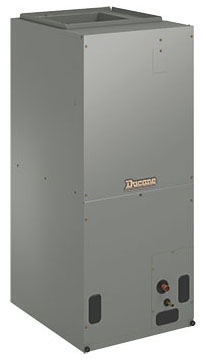

BCE5C60MA1P DUCANE 5 TON CONSTANT TORQUE AIR HANDLER W/OMNIGUARD 16G83

Item #: 161226
Manufacturer Item: 16G83
Manufacturer: ALLIED AIR ENTERPRISES INC.
60000 BTU/Hr Cooling, 208 to 230 VAC, 60 Hz, 1-Phase, Multi-Position, 1-Piece, Compact Air Handler
You must be logged in to order this item.
Log in here
161226

Foil Faced Insulation

Double Hemmed Technology for Increased Structural Rigidity

Polymer Plugs on Drain Locations for Easy Installation

High-Strength/Heat Resistant/Corrosion Resistance SMC Drain Pans

Antimicrobial Treated Polymer Drain Pan Built to Resist Mold and Mildew Growth

2 Percentage Less Air Leakage

1-Piece Design

Smaller Profile for Closet Application

Air Handlers

Type
1-Piece
Approval
ETL (Canada and US), AHRI
Cooling Capacity
60000 BTU/Hour
Frequency Rating
60 Hertz
Number of Phases
1
Voltage Rating
208 to 230 Volt AC
Weight
186 Pound
Enclosure Finish
Painted Backed Polyester
Current Rating
7.6 Amp (Blower Motor)
Power Rating
1 HP (Motor)
Installation
Multi-Position (Upflow/Horizontal Left/Right)
Enclosure Material
Galvanized Steel
