Home  >  HVAC Service Parts  >  Motors  >  Condenser Fan Motors  > 5431 NIDEC EZ-WIRE

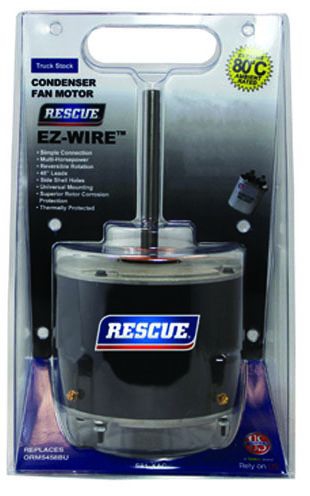

5431 NIDEC EZ-WIRE CONDENSER FAN MOTOR 1/4-1/8 HP, 825 RPM 208/230V

Item #: 164979
Manufacturer Item: 5431
Manufacturer: TCG - US MOTORS BY NIDEC
1/4 to 1/8 HP, 208 to 230 VAC 1-Phase 60 Hz, 2.1 A, 825 RPM, 1-Speed, NEMA Frame 48, TEAO, PSC, Condenser Fan Motor
164979

Side Shell Hole, Automatic Reset Thermal Protection

condenser fan motors

Power Rating
1/4 to 1/8 HP
Voltage Rating
208 to 230 Volt AC 1-Phase
Motor FLA
2.1 Amp
Speed Rating
825 RPM
Frequency Rating
60 Hertz
Number of Speeds
1
Enclosure Type
TEAO
Application
HVAC and Refrigeration System
Insulation Class
F
Reversible
Yes
Mounting
Stud
Service Factor
1
