Home  >  Hydronics  >  Valves  >  Misc-Valves  > PLB200X P 3/8X5/8 COMPRESSION

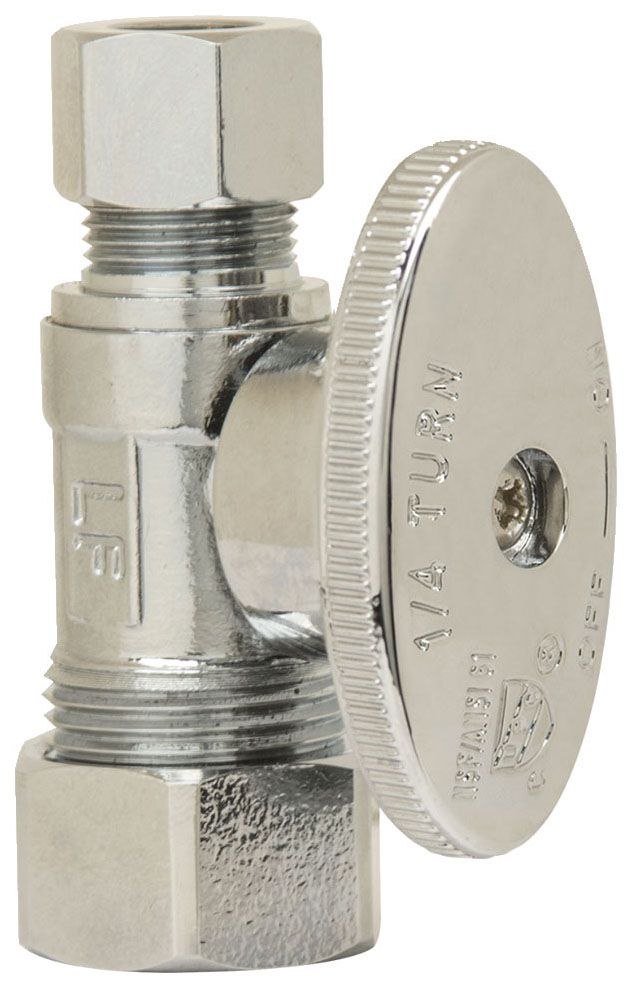

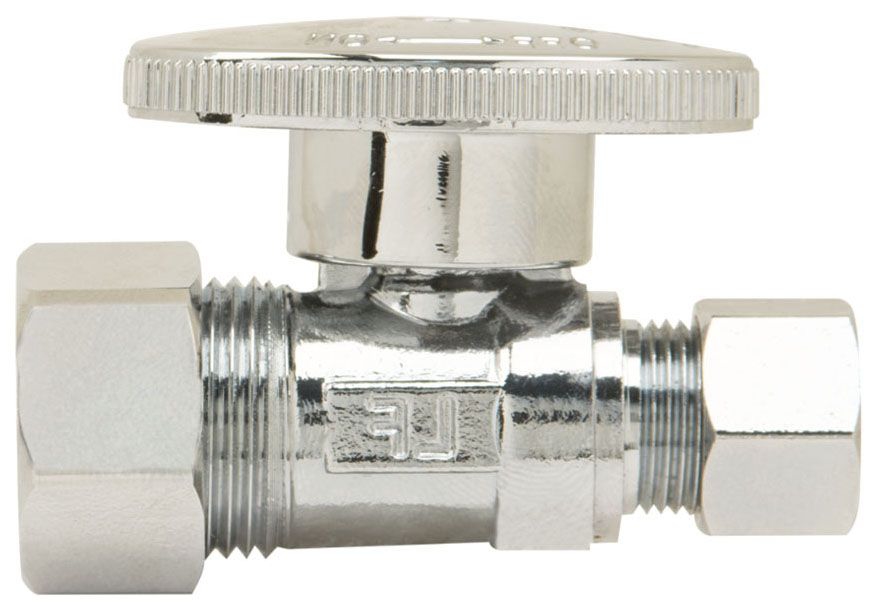

PLB200X P 3/8X5/8 COMPRESSION STRAIGHT STOP 1/4 TURN CHROME LEAD FREE

Item #: 168122
Manufacturer Item: PLB200X P
Manufacturer: TCG - BRASSCRAFT MFG. COMPANY
1/2" x 3/8", Compression x Compression, 125 PSI, Lead-Free, Chrome Plated Brass, 1/4 Turn, Straight, Water Supply Stop
You must be logged in to order this item.
Log in here

Compatible with Copper and PEX

Chrome Plated for Corrosion Resistance

Easy On/Off Operation with a 90 Degree Turn of the Handle

Lead-Free

RoHS Compliant

Misc-Valves

End Connection
Compression x Compression
Body Material
Chrome Plated Brass
Inclusions/Features
Chrome Plated Brass Ball/Compression Nut/Adapter, Brass Stem
Pressure Rating
125 PSI
Type
Straight
Application
Residential, Commercial, Potable Water Distribution System
Temperature Rating
40 to 140 Deg F
Applicable Standard
ASME A112.18.1/CSA B125.1, NSF/ANSI 61/372, IAPMO, CUPC
Actuation Type
1/4 Turn
End to End Distance
2.31 Inch
Handle Material
Chrome Plated ABS Plastic
Seat Material
PTFE
