Home  >  HVAC Equipment  >  Specialty HVAC  >  Unit Heaters-Specialty  > LF25-60A-1 ALLIED 60K BTU

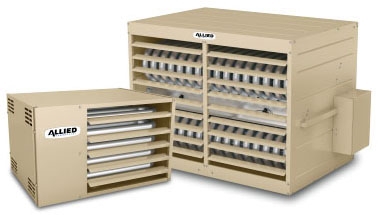

LF25-60A-1 ALLIED 60K BTU LOW PROFILE HORIZONTAL UNIT HEATER (18C68A)

Item #: 168149
Manufacturer Item: 18C68A
Manufacturer: ALLIED AIR ENTERPRISES INC.
115 VAC 60 Hz 1-Phase, 60000 BTU/Hr Input, 50220 BTU/Hr Output, 1000 CFM, Low Profile, Compact, Horizontal, Gas Unit Heater
168149

Horizontal Unit Heater are Low Profile, Compact in Design and Easy to Install

Ideal for Economical Heating Systems in Garages and Non-Confined Living Space

Shipped Completely Assembled with Control Factory Installed and Wired

Hinged, Reversible Door for Easy Access

Hanging Bracket for Suspending Unit are Furnished for Field Installation

Tubular Heat Exchanger is Constructed of Aluminized Steel for Superior Resistance to Corrosion and Oxidation

Compact Design Reduces Space Requirement in Unit Cabinet. Heat Exchanger has Been Laboratory Life Cycle Tested

Inshot Burner Assembly

Prepurges Heat Exchanger and Safely Vent Combustion Product

Electronic Direct Spark Ignition Control Provides Positive and Safe Main Burner Ignition

Control Board Contains All Necessary Controls and Relays to Operate Unit

Direct Plug-In Wiring Harness

120 Volt/24 Volt Transformer Furnished as Standard

Unit Heaters-Specialty

Type
Low Profile, Compact, Horizontal
Control Type
Gas Control Valve, Fan Timer Control, Ignition Control
Capacity
60000 BTU/Hour (Input), 50220 BTU/Hour (Output)
Current Rating
2 Amp Full Load (Fan Motor)
Voltage Rating
115 Volt AC 60 Hertz
Approval
CSA
Application
Residential/Commercial
Number of Phases
1
Air Flow Rate
1000 CFM
Fan/Motor Type
Direct Drive Propeller Type Fan, Permanently Lubricated Fan
Material
Heavy Gauge Cold Rolled Steel
Finish
Pre-Painted
Heating Element
Tubular Aluminized Steel
