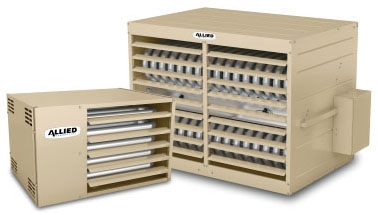

LF25-175A-1 ALLIED 175K BTU UNIT HEATER (18C45A)

Item #: 168156
Manufacturer Item: 18C45A
Manufacturer: ALLIED AIR ENTERPRISES INC.
115 VAC 60 Hz 1-Phase, 175000 BTU/Hr Input, 145250 BTU/Hr Output, 2350 CFM, Low Profile, Compact, Horizontal, Gas Unit Heater
168156

Horizontal Unit Heater are Compact in Design and Easy to Install

Ideal for Economical Commercial Heating System

Shipped Completely Assembled with Control Factory Installed and Wired

Tubular Heat Exchanger is Constructed of Aluminized or Stainless Steel for Superior Resistance to Corrosion and Oxidation

Curved Design Allows Complete Exposure of Heating Surfaces to Supply Air Stream

Inshot Burner Assembly

Prepurges Heat Exchanger

Safely Vent Combustion Product

Blower Motor has Ball Bearings and is Thermally Protected

Electronic Direct Spark Ignition Control Provides Positive and Safe Main Burner Ignition

Spark is Intermittent and Occurs Only when Required

Separate Electronic Flame Sensor Control Assures Safe and Reliable Operation

Direct Plug-In Wiring Harness

120 Volt/24 Volt Transformer Furnished as Standard

Unit Heaters-Specialty

Type
Low Profile, Compact, Horizontal
Control Type
Gas Control Valve, Fan Timer Control, Ignition Control
Capacity
175000 BTU/Hour (Input), 145250 BTU/Hour (Output)
Current Rating
7 Amp Full Load (Fan Motor)
Voltage Rating
115 Volt AC 60 Hertz
Approval
CSA
Application
Commercial
Number of Phases
1
Air Flow Rate
2350 CFM
Fan/Motor Type
Direct Drive Propeller Type Fan, Permanently Lubricated Fan
Material
Heavy Gauge Cold Rolled Steel
Finish
Pre-Painted
Heating Element
Tubular Aluminized Steel
