Home  >  HVAC Service Parts  >  Heating Parts Service  >  Relays-Heating Parts Service  > R8222D1014/U HONEYWELL

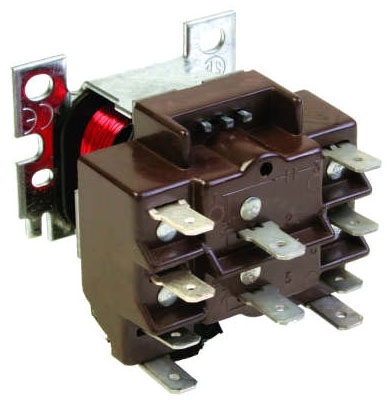

R8222D1014/U HONEYWELL RELAY

Item #: 3108
Manufacturer Item: R8222D1014/U
Manufacturer: TCG - RESIDEO (HONEYWELL/ADEMC
120/208/240/277/480 VAC 50/60 Hz, 24 VAC 50/60 Hz Coil, DPDT, 1/4" Quick-Connect, General Purpose Relay
3108

Molded Terminal Numbers and Circuit Diagram on Top of Relay Provide Easy Identification for Wiring and Checking System

Open Coil Assures Cooler Operation

Laminated Magnet Construction for Higher Efficiency

Base Designed for Easy Replacement of Competitive Relay

relays-Heating Parts Service

Coil Voltage
24 Volt AC 50/60 Hertz
Contact Configuration
DPDT
Contact Current Rating
3 Amp at 480 Volt AC/6 Amp at 208/240/277 Volt AC/12 Amp at
Terminal Type
1/4 Inch Quick Connect
Contact Voltage Rating
120/208/240/277/480 Volt AC 50/60 Hertz
Approval
UL, CSA
