Home  >  Hydronics  >  Pumps and Parts  >  Sump Pumps  > 283 LIBERTY 1/2HP SUMP PUMP

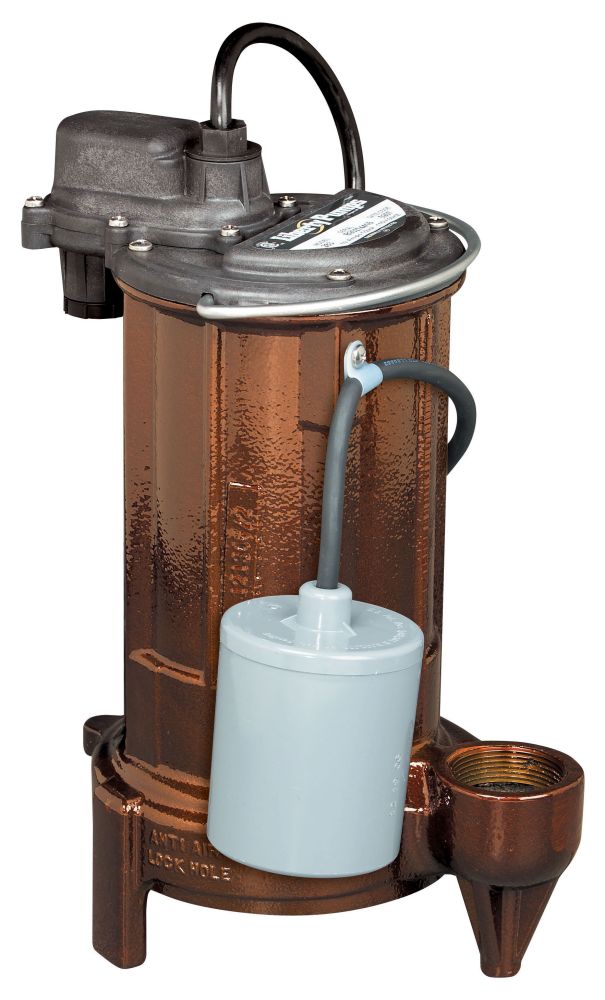

283 LIBERTY 1/2HP SUMP PUMP WIDE SERIES PLUG ANGLE FLOAT SWITCH 115V 8.5A 1-1

Item #: 35434
Manufacturer Item: 283
Manufacturer: TCG - LIBERTY PUMPS
1-1/2" Discharge, 62 GPM, 1/2 HP, 3450 RPM, 115 VAC 60 Hz, 10' Cord, Submersible, Automatic, Sump/Effluent Pump
35434

Unique 1-Piece Uni-Body Casting

Quick-Disconnect 10 Foot Standard Power Cord Allows Replacement of Cord in Seconds without Breaking Seal to Motor

Permanently Lubricated Upper and Lower Bearing

Oil Filled, Hermetically Sealed Motors with Thermal Overload Protection

Stainless Steel, Removable Bottom Screen

Sump Pumps

Flow Rate
62 GPM at 5 Foot
Housing Material
Class 25 Cast Iron
Input Supply Rating
115 Volt AC 60 Hertz 1-Phase 8 Amp
Overall Dimensions
9.5 Inch Length x 6.4 Inch Width x 13.2 Inch Height
Application
Waste Water System, Liquid Waste Transfer and Commercial Hea
Casing Material
Class 25 Cast Iron
Discharge Head
37 Foot
Float Type
Piggy Back
Impeller Material
Polymer
Motor Type
Class B Insulation, Hermetically Sealed, Oil Filled Permanen
Power Cord Length
10 Foot
Power Rating
1/2 HP
Shaft Material
416 Stainless Steel
Temperature Rating
140 Deg F (Liquid), 266 Deg F (Stator), 221 Deg F (Thermal O
Type
Submersible, Automatic
Warranty
3 Year
Applicable Standard
CSA (Canada and US), SSPMA, ISO 9001
Impeller Design
Vortex
Shaft Seal Details
Unitized Ceramic Carbon Mechanical Seal
Speed Rating
3450 RPM
