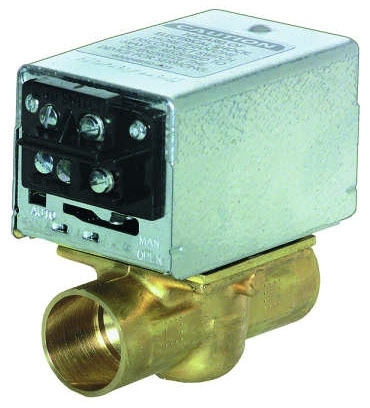

V8043F1051/U HONEYWELL ZONE VALVE

Item #: 37561
Manufacturer Item: V8043F1051/U
Manufacturer: TCG - RESIDEO (HONEYWELL/ADEMC
1" x 1", Soldered x Soldered, 24 VAC 50/60 Hz, 0.32 A, Brass, 2-Way, Straight-Through, Low Voltage, Motorized Zone Valve
37561

2-Way On-Off Low Voltage Valves Consist of an Actuator and Valve Assembly for Controlling the Flow of Hot Water

Manual Opener for Valve Operation on Power Failure

Valve Returns to Automatic Position When Power is Restored

All Models May be Installed without Disassembling the Valve

Compact Construction for Easy Installation

Complete Powerhead May be Removed or Replaced without Breaking Plumbing Line Connections or Draining the System

Actuator Motor May be Replaced without Removing the Valve Body or Draining the System

Zoning-Honeywell Red Link

Type
2-Way, Straight-Through, Low Voltage
Inclusions/Features
Manual Opener, Normally Open SPST End Switch
Temperature Rating
50 to 200 Deg F (Fluid)
Applicable Standard
UL, CSA
Input Supply Rating
24 Volt AC 50/60 Hertz 0.32 Amp, 7.7 Volt Amp
Application
Hydronic Control
Actuation Type
2-Position, Spring Return to Close
Body Material
Brass
End Connection
Soldered x Soldered
Media Handled
Hot Water
Pressure Rating
20 PSI (Close Off), 125 PSI (Static)
Valve Position
NC
Valve Timing
15 Second (Open)
