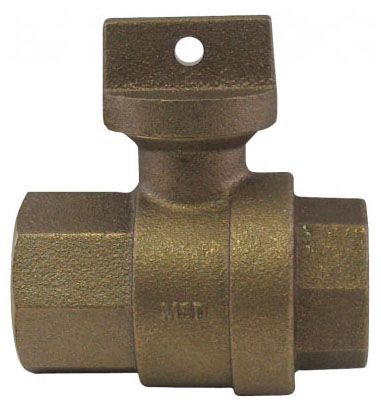

5129-173 AY MCDONALD 3/4 CURB STOP BALL STYLE FIPXFIP LEAD FREE

Item #: 38495
Manufacturer: TCG - AY MCDONALD
3/4" x 3/4", FPT x FPT, 300 PSIG, Lead-Free, UNS C89833 Brass, Ball, Regular Pattern, Curb Stop
You must be logged in to order this item.
Log in here
38495

Ball Valve Curb Stops Maintain their Low Turning Torques and Bubble-Tight 300 PSIG Water Pressure Rating Due to the PTFE Coated Brass Ball that is Supported by Two Blow-Out Proof EPDM Seals

The End Piece Joint is Sealed with an EPDM O-Ring and Thread Locker. M C Donald Ball Curb Stops Offer Positive Shut-Off from Either Direction and are Available with a Wide Variety of End Connections or Minneapolis Curb Box Threads

A Brass 2 Inch Square Operating Head that is Easily Pinned to Existing Curb Stops is Available Separately

Lead-Free

Water Service Pipe & Fittings

Applicable Standard
ANSI/AWWA C800, NSF/ANSI 61/372
Type
Ball, Regular Pattern
End Connection
Female Threaded x Female Threaded
Application
Potable Water
Pressure Rating
300 PSIG
Body Material
UNS C89833 Brass
End to End Distance
2.94 Inch
Inclusions/Features
Retaining Ring, EPDM O-Ring, EPDM Port Seal, Thread Locker
Seat Material
PTFE
